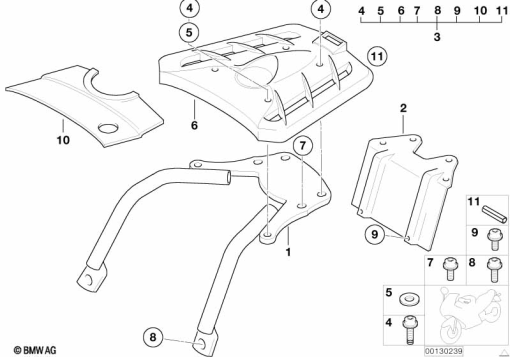

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 653 842 | CARRIER PLATE | 1 | |
| 2 | 71 60 7 653 843 | SUPPORTING PLATE | 1 | |
| 3 | 71 60 7 682 341 | SET: MOUNTING PARTS, BRACKET F TOP CASE - F650GS/GS-DAKAR | 1 | |
| 4 | 07 12 9 905 537 | ISA SCREW WITH WASHER - M6X30-U0-8.8 | 1 | |
| 5 | 07 11 9 907 030 | WASHER - 8,4X16X1,6-ZNNV | 1 | |
| 5 | 07 11 9 931 105 | WASHER - 8,4 | 1 | |
| 6 | 71 60 7 653 845 | CARRIER PLATE | 1 | |
| 7 | 07 12 9 903 507 | TORX BOLT - M6X16 | 1 | |
| 8 | 07 12 9 906 803 | ISA SCREW WITH WASHER - M6X25-U2-8.8 | 1 | |
| 9 | 07 12 9 903 487 | TORX BOLT - M8X14 | 1 | |
| 10 | 71 60 7 653 844 | COVER PLATE | 1 | |
| 11 | 07 11 9 941 417 | ROLL PIN - 2,5X18 | 1 |
