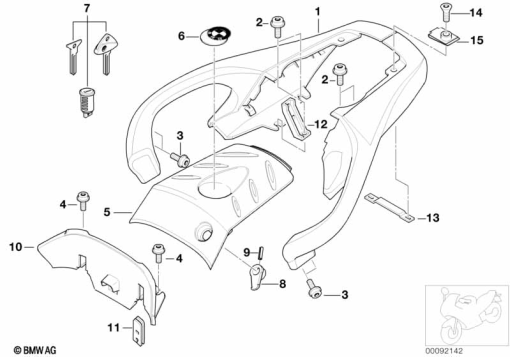

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 346 381 | HANDLE WITH LUGGAGE SUPPORT LEFT - SILVER | - | |
46 54 2 346 382 | HANDLE WITH LUGGAGE SUPPORT RIGHT - SILVERAlternative for position 1 | - | ||
| 2 | 07 12 9 903 375 | SCREW - M6X20-Z2-8.8 | - | |
| 3 | 07 12 9 902 771 | FILLISTER-HEAD SCREW - M6X16-Z2 | - | |
| 4 | 07 12 9 902 330 | ISA SCREW - M6X16-Z1 | - | |
| 5 | 46 54 2 346 383 | COVER F LUGGAGE SUPPORT | - | |
| 6 | 36 13 1 181 082 | PLAQUE WITH ADHESIVE FILM - D=45MM | - | |
| 7 | 51 25 2 313 284 | LOCK CYLINDER WITH KEY | - | |
51 25 2 313 285 | LOCK (WITH KEY CODE)Alternative for position 7 | - | ||
| 8 | 46 63 2 313 938 | CATCH | - | |
| 9 | 07 11 9 941 417 | ROLL PIN - 2,5X18 | - | |
| 10 | 46 54 2 350 077 | END COVER | - | |
| 11 | 46 54 7 651 033 | GROMMET - LEFT | - | |
46 54 7 651 034 | GROMMET - RIGHTAlternative for position 11 | - | ||
| 12 | 46 63 7 661 715 | REINFORCEMENT PLATE | - | |
| 13 | 46 63 7 661 927 | CONNECTION PLATE | - | |
| 15 | 61 13 1 372 033 | BODY NUT - M5 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
