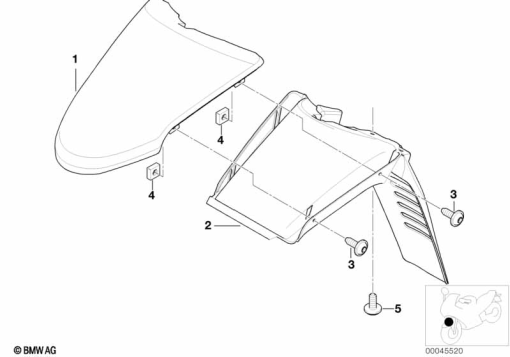

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 7 652 573 | FRONT MUDGUARD - RED 2 | - | |
46 61 7 652 574 | FRONT MUDGUARD - MANDARIN 2Alternative for position 1 | - | ||
46 61 7 652 575 | FRONT MUDGUARD - TITANBLUE 2Alternative for position 1 | - | ||
46 61 7 652 674 | FRONT MUDGUARD - TIEFBLACKAlternative for position 1 | - | ||
46 61 7 663 014 | FRONT MUDGUARD - BRONZEGRÜN 1Alternative for position 1 | - | ||
46 61 7 673 176 | FRONT MUDGUARD - YELLOW 2Alternative for position 1 | - | ||
46 61 7 673 177 | FRONT MUDGUARD - TITANSILVER 2Alternative for position 1 | - | ||
46 61 7 673 178 | FRONT MUDGUARD - AVUSBLUE 2Alternative for position 1 | - | ||
46 61 7 677 311 | FRONT MUDGUARD - YELLOW/TITANSI.Alternative for position 1 | - | ||
| 2 | 46 61 2 350 000 | MUDGUARD BOTTOM PART, FRONT WHEEL | - | |
| 3 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 (to 12/99) | - | |
06 32 7 657 949 | FILLISTER HEAD SCREW - M5X16-A2-80-MKAlternative for position 3 | - | ||
| 4 | 61 13 1 372 033 | BODY NUT - M5 | - | |
| 5 | 07 12 9 906 459 | ISA SCREW WITH WASHER - M6X16 | - |
