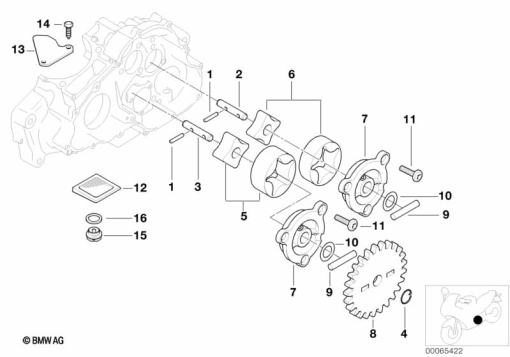

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 2 343 105 | ROLL PIN - 4X15,8 | 1 | |
| 2 | 11 41 7 652 910 | SHAFT, PRESSURE SIDE - L=52MM | 1 | |
| 3 | 11 41 7 652 909 | SHAFT, SUCTION SIDE - L=55MM | 1 | |
| 4 | 11 41 2 343 458 | LOCK RING | 1 | |
| 5 | 11 41 7 652 928 | SET ROTOR, SUCTION SIDE | 1 | |
| 6 | 11 41 7 652 927 | SET ROTOR, PRESSURE SIDE | 1 | |
| 7 | 11 41 2 343 106 | OIL PUMP COVER | 1 | |
| 8 | 11 41 2 343 109 | GEAR WHEEL - 25 | 1 | |
| 9 | 11 41 2 343 108 | ROLL PIN - 4X29,8 | 1 | |
| 10 | 11 41 2 343 107 | STOP DISK - 10,1X17X1 | 1 | |
| 11 | 11 41 7 654 012 | TORX BOLT - M5X16 | 1 | |
| 12 | 11 41 2 343 114 | OIL STRAINER | 1 | |
| 13 | 11 41 7 652 858 | STRAINER PLATE | 1 | |
| 14 | 11 41 2 343 116 | SCREW SELF-TAPPING - M5X16 | 1 | |
| 15 | 11 13 7 708 604 | SCREW PLUG, MAGNETIC - M24X2 | 1 | |
| 16 | 11 41 7 652 949 | GASKET RING - 24X30X1,5 | 1 |
