F650GS 01-04 (R13) | Engine

CYLINDER WITH PISTON

Diagram #11_2946 | 4 parts

100%

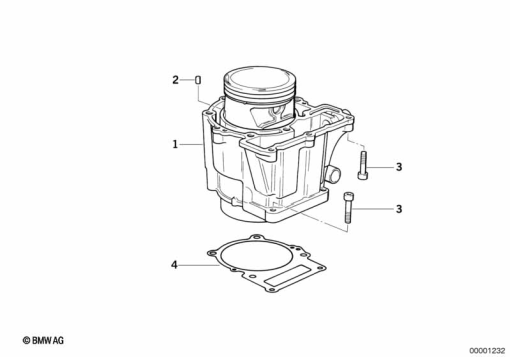

F650GS 01-04 (R13) CYLINDER WITH PISTON exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
11 11 7 652 877
CYLINDER WITH PISTON, SILVER1
2
11 11 2 343 223
PIN - 5X101
3
11 11 7 706 514
HEXAGON BOLT WITH INSIDE TORX - M6X30-8.81
4
11 11 7 706 497
CYLINDER BASE GASKET1
