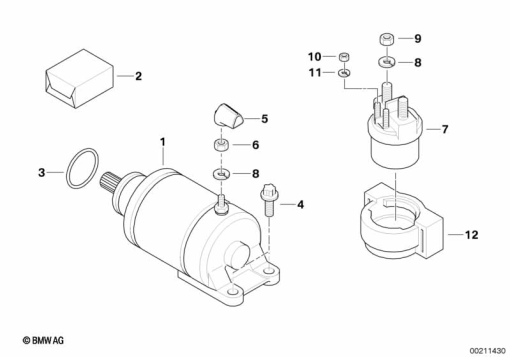

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 41 2 343 511 | STARTER, SILVER | - | |
11 44 7 709 449 | STARTER, BLACKAlternative for position 1 | - | ||
| 2 | 12 41 2 343 512 | SET: REPAIR KIT FOR STARTER | - | |
| 3 | 12 41 2 343 252 | O-RING - 24,4X3,1 | - | |
| 4 | 11 11 7 706 514 | HEXAGON BOLT WITH INSIDE TORX - M6X30-8.8 | - | |
| 5 | 12 41 1 459 411 | PROTECTION CAP | - | |
| 6 | 07 12 9 905 542 | HEX NUT WITH PLATE - AM6-8-ZNNIV SI | - | |
| 7 | 61 31 2 346 566 | STARTER RELAY | - | |
| 8 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90)Alternative for position 8 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 8 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 8 | - | ||
| 9 | 07 11 9 921 054 | HEX NUT - M6-04-2-ZN | - | |
| 10 | 07 11 9 905 236 | HEX NUT - M3-8-ZNNIV SI | - | |
| 11 | 07 11 9 933 017 | SPRING WASHER - B3 | - | |
| 12 | 61 31 2 346 582 | BRACKET FOR STARTER RELAY | - |
