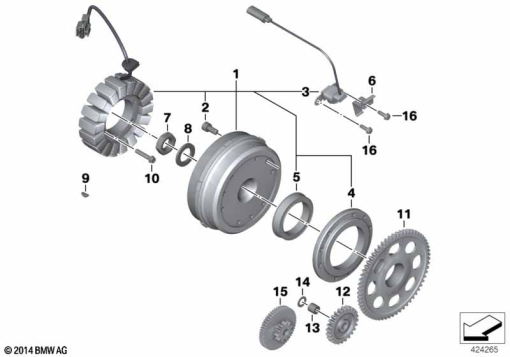

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 11 7 687 776 | ALTERNATOR | - | |
| 2 | 11 11 8 537 773 | FILLISTER-HEAD SCREW - M8X16-12.9-MK | - | |
| 3 | 12 11 7 652 904 | PULSE GENERATOR | - | |
| 4 | 12 31 8 524 427 | FREE WHEEL HOUSING | - | |
| - | 12 11 7 687 777 | FREE WHEEL | - | |
| 5 | 12 11 7 687 777 | FREE WHEEL | - | |
| 6 | 11 10 7 652 923 | BRACKET INNER | - | |
| 7 | 12 31 7 700 301 | HEX NUT - M22X1,5 | - | |
| 8 | 12 11 2 343 250 | LOCK RING - 22 | - | |
| 9 | 11 27 2 343 243 | WOODRUFF KEY - 4X5 | - | |
| 10 | 12 31 7 707 433 | HEXAGON BOLT WITH INSIDE TORX - M6X35-8.8 | - | |
| 11 | 12 11 7 675 940 | FREE WHEEL | - | |
| 12 | 12 11 2 343 138 | GEAR WHEEL - Z=24 | - | |
| 13 | 12 11 7 652 918 | SPACER SLEEVE - 10X13X12,2 | - | |
| 14 | 11 41 2 343 107 | STOP DISK - 10,1X17X1 | - | |
| 15 | 12 11 2 343 139 | GEAR WHEEL - 11/52 Z | - | |
| 16 | 11 41 2 343 116 | SCREW SELF-TAPPING - M5X16 | - |
