Yes, the MCS Module 1 is ECE-approved, which means it meets European road safety standards and is legal for use on public roads throughout Europe. The ECE certification ensures the taillight meets specific brightness, durability, and color requirements set by European regulatory bodies.
The Module 1 is designed for mounting via lamination or direct gluing into your custom bodywork. Simply position it in your desired location on the tail section, apply a strong adhesive suitable for plastic and your mounting surface, and allow it to cure fully. The three wires (yellow, red, and black) connect to your motorcycle's electrical system: yellow to the taillight circuit, red to the brake light circuit, and black to ground.
The MCS Module 1 has compact dimensions of 21.5mm wide x 8.5mm high x 10.5mm deep. This miniature size makes it perfect for modern, minimalist custom builds where space is limited, such as cafe racers and stripped-down classic motorcycles.
Yes, MCS offers an optional steel housing (part number 922143) available separately. The steel housing provides a more robust and finished appearance, and may offer different mounting options. You can choose between the standard plastic body or upgrade to the steel housing depending on your aesthetic preferences and installation requirements.
Yes, the MCS Module 1 is dual-function. The yellow wire controls the taillight (constant illumination when the ignition is on), while the red wire activates the brake light (increased brightness when braking). The black wire provides the ground connection. This dual-function design allows the taillight to serve both purposes simultaneously.
Installation difficulty depends on your custom project. The electrical connections are straightforward and can be completed by anyone with basic motorcycle wiring knowledge. The main challenge is proper gluing or laminating into your custom bodywork. If you're uncertain about the adhesive application or electrical connections, consulting a professional motorcycle builder or mechanic is recommended.
Use a strong, flexible adhesive designed for plastic-to-plastic or plastic-to-fiberglass bonding. Two-part epoxy, polyurethane adhesive, or contact cement suitable for plastic are all effective options. Ensure the surfaces are clean and dry before application. Test the adhesive on a small area first to ensure compatibility with your specific bodywork material.
The SMD LED technology used in the Module 1 provides excellent brightness that meets ECE standards while consuming minimal power. LEDs are more efficient than traditional incandescent bulbs, delivering comparable or superior light output with better reliability and longer lifespan. The small size doesn't compromise brightness—modern LED technology packs significant light output into compact housings.
More questions? View all FAQs

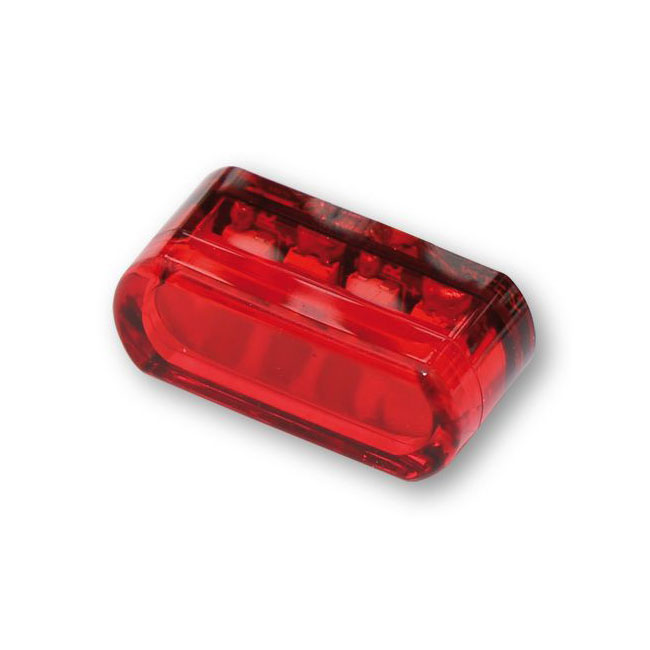

The MCS Module 1 LED taillight is a compact, modern solution for custom motorcycle builds and cafe racer projects. Featuring a miniature design with SMD power LEDs, this taillight delivers reliable rear illumination in a housing measuring just 21.5mm wide x 8.5mm high x 10.5mm deep.
Its slim profile makes it ideal for applications where space is limited, such as classic BMW restorations or minimalist custom builds.
This ECE-approved taillight combines functionality with versatility. The red lens is optimized for horizontal rear mounting and can be laminated or glued directly into your custom bodywork or tail section. The integrated SMD LED technology ensures bright, consistent light output while consuming minimal power.
Three color-coded wires provide straightforward installation: yellow for taillight function, red for brake light activation, and black for ground.
Built with a durable plastic body, the Module 1 is designed for long-term reliability in demanding motorcycle environments. For alternative mounting solutions, an optional steel housing (part number 922143) is available separately, allowing you to adapt this taillight to virtually any custom installation scenario.
The MCS Module 1 LED taillight is a compact, modern solution for custom motorcycle builds and cafe racer projects. Featuring a miniature design with SMD power LEDs, this taillight delivers reliable rear illumination in a housing measuring just 21.5mm wide x 8.5mm high x 10.5mm deep.
Its slim profile makes it ideal for applications where space is limited, such as classic BMW restorations or minimalist custom builds.
This ECE-approved taillight combines functionality with versatility. The red lens is optimized for horizontal rear mounting and can be laminated or glued directly into your custom bodywork or tail section. The integrated SMD LED technology ensures bright, consistent light output while consuming minimal power.
Three color-coded wires provide straightforward installation: yellow for taillight function, red for brake light activation, and black for ground.
Built with a durable plastic body, the Module 1 is designed for long-term reliability in demanding motorcycle environments. For alternative mounting solutions, an optional steel housing (part number 922143) is available separately, allowing you to adapt this taillight to virtually any custom installation scenario.
