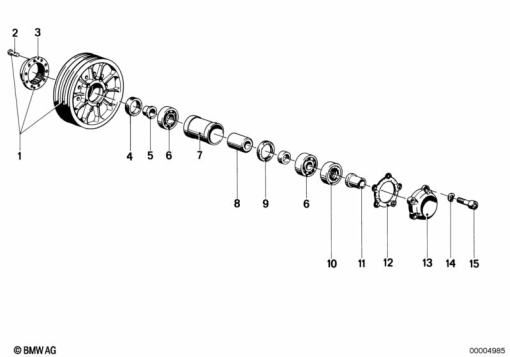

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 1 232 979 | WHEEL HUB REAR | - | |
| 2 | 07 11 9 900 800 | RIVET - 6X25 | - | |
| 3 | 36 31 1 232 525 | DRIVING DOG | - | |
| 4 | 36 31 1 231 700 | SHAFT SEAL | - | |
| 5 | 36 31 2 301 737 | SLEEVE - 10,7MM | - | |
36 31 4 038 142 | SLEEVE - 9,2MMAlternative for position 5 | - | ||
| 6 | 07 11 9 985 005 | TAPERED ROLLER BEARING - 40X17X13.25 | - | |
| 7 | 36 31 1 230 324 | SPACER TUBE | - | |
| 8 | 36 31 1 235 737 | SPACER SLEEVE | - | |
| 9 | 36 31 1 235 570 | RING | - | |
| 10 | 36 31 1 233 247 | SHAFT SEAL - 36X22X8 (to 09/77) | - | |
36 31 1 235 833 | SHAFT SEAL (from 09/77)Alternative for position 10 | - | ||
36 31 1 235 838 | SHAFT SEAL - 22X40X7 (from 09/77)Alternative for position 10 | - | ||
36 31 1 240 238 | SHAFT SEAL - 22X40X7 (from 09/77)Alternative for position 10 | - | ||
| 11 | 36 31 1 230 322 | COMPRESSION RING | - | |
| 12 | 36 31 1 232 523 | GASKET | - | |
| 13 | 36 31 1 232 477 | COVER | - | |
| 14 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 14 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 14 | - | ||
| 15 | 31 42 2 311 105 | FILLISTER-HEAD SCREW - M6X30-8.8-ZNS | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 15 | 07 11 9 919 927 | SOCKET HEAD CAP SCREW | - | |
07 11 9 919 927.1 | FILLISTER HEAD SCREWAlternative for position 15 | - |
