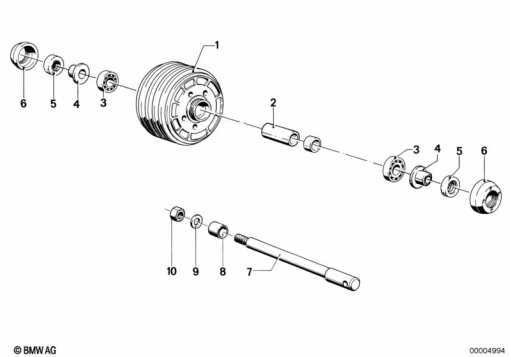

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 1 237 090 | HUB (09/77 to 09/80) | - | |
| 2 | 36 31 1 237 606 | PIPE (to 09/80) | - | |
| 3 | 07 11 9 985 005 | TAPERED ROLLER BEARING - 40X17X13.25 | - | |
| 4 | 36 31 1 230 322 | COMPRESSION RING | - | |
| 5 | 36 31 1 233 247 | SHAFT SEAL - 36X22X8 (to 09/77) | - | |
36 31 1 235 838 | SHAFT SEAL - 22X40X7 (from 09/77)Alternative for position 5 | - | ||
36 31 1 240 238 | SHAFT SEAL - 22X40X7 (from 09/77)Alternative for position 5 | - | ||
| 6 | 36 31 1 232 422 | KNIRLED NUT | - | |
| 7 | 34 11 1 233 490 | QUICK-RELEASE AXLE - D=17MM/L=253MM | - | |
| 8 | 36 31 1 233 491 | BUSH | - | |
| - | 34 11 1 233 490S | FRONT AXLE | - | |
| 9 | 34 11 1 233 020 | WASHER | - | |
| 10 | 07 11 9 901 309 | HEX NUT - M14X1,5 | - |
