R80 (2477) | Vehicle Trim

MOUNTING PARTS F SET OF LOCKS

Diagram #51_2453 | 22 parts

100%

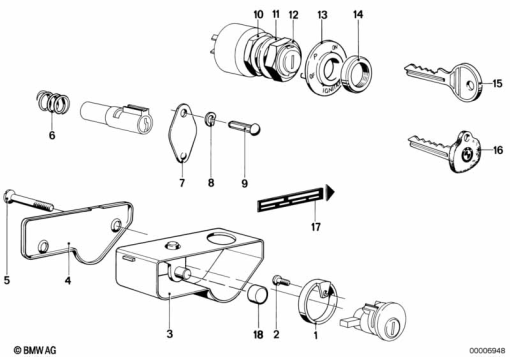

R80 (2477) MOUNTING PARTS F SET OF LOCKS exploded view parts diagram

Parts List (22)

#Part NumberDescriptionQty
1
51 25 2 309 932
RING-
2
07 11 9 907 602
FILLISTER HEAD SCREW - M3X8-4.8-H-ZN-
3
51 25 1 230 186
LOCK-
4
51 25 1 230 194
PLATE-
5
07 11 9 928 562
CSK.FILLISTER HEAD SREW - M5X40-
07 11 9 928 504
CSK.FILLISTER HEAD SREWAlternative for position 5-
6
32 32 9 016 104
COMPRESSION SPRING-
7
32 32 9 016 101
COVER (to 08/81)-
32 32 9 016 101KIT
LOCK COVER KIT FORK /2-/7Alternative for position 7-
8
07 11 9 932 100
WAVE WASHER - B4 (to 08/81)-
07 11 9 932 030
WAVE WASHER - B4 (to 08/81)Alternative for position 8-
9
07 11 9 944 650
NOTCHED NAIL 4X10 ST LK CVR SS-
07 11 9 944 651
NOTCHED NAIL - 4X10 (to 08/81)Alternative for position 9-
10
61 32 1 243 278
0.01-
11
63 12 1 357 504
WAVE WASHER - 22,5 / 30-
12
61 32 1 243 279
HEX NUT-
15
51 25 9 062 680
STANDARD KEY (BLANK) (to 09/80)-
51 25 1 233 898
STANDARD KEY (CODE) (from 09/80)Alternative for position 15-
ELA53660A
FOLDING BLANK SQUAREAlternative for position 15-
16
51 25 1 453 645
IGNITION KEY, FOLDING (CODE) (from 09/80)-
17
46 63 1 237 918
STICKER-
18
51 25 1 452 297
51 25 1 452 297-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
