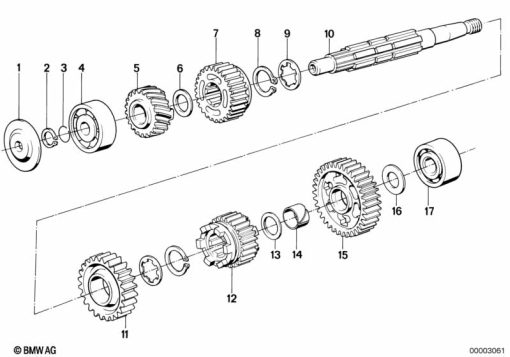

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 12 1 230 075 | PROTECTION PLATE | 1 | |
| 2 | 07 11 9 934 100 | LOCK RING - 17X1 | 1 | |
| 3 | 23 21 1 235 006 | SNAP RING | 1 | |
| 4 | 23 12 1 338 795 | GROOVED BALL BEARING - 62X17X17 | 1 | |
| 5 | 23 22 1 234 889 | GEAR WHEEL 5TH GEAR - 15°DEG (to 04/82) | 1 | |
| 1 | 23 22 1 234 886 | GEAR WHEEL 3RD GEAR (to 04/82) | 1 | |
| 6 | 23 21 1 231 616 | SHIM - 2.000MM | 1 | |
| 7 | 23 22 1 234 886 | GEAR WHEEL 3RD GEAR | 1 | |
| 8 | 07 11 9 907 340 | LOCK RING - 28X1,5 | 1 | |
| 9 | 23 21 1 231 633 | WASHER | 1 | |
| 10 | 23 21 1 338 793 | OUTPUT SHAFT | 1 | |
| 1 | 23 12 1 338 795 | GROOVED BALL BEARING - 62X17X17 | 1 | |
| 1 | 07 11 9 934 100 | LOCK RING - 17X1 | 1 | |
| 11 | 23 22 1 231 527 | GEAR WHEEL, 2ND GEAR | 1 | |
| 12 | 23 22 1 234 213 | GEAR WHEEL 4TH GEAR | 1 | |
| 1 | 23 31 1 234 215 | SHIFTING FORK 1ST AND 2ND GEAR | 1 | |
| 13 | 23 21 1 454 099 | SHIM - 1.000MM | 1 | |
| 14 | 23 21 1 232 299 | BUSH | 1 | |
| 15 | 23 22 1 231 523 | GEAR WHEEL 1ST GEAR | 1 | |
| 16 | 23 21 1 231 630 | WASHER | 1 | |
| 17 | 23 12 1 231 495 | GROOVED BALL BEARING - 6304 C3 | 1 |
