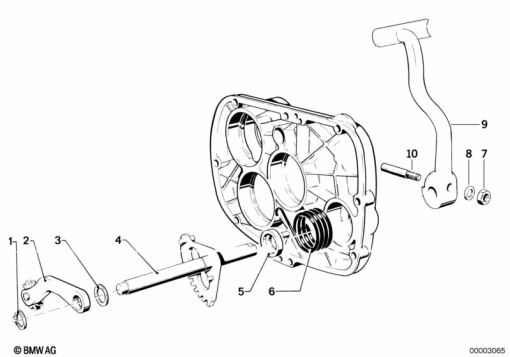

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 934 100 | LOCK RING - 17X1 | - | |
| 2 | 23 51 1 231 673 | HOLDER | - | |
| 3 | 23 51 1 232 090 | WASHER | - | |
| 4 | 23 51 1 338 609 | SECTOR SHAFT, KICK STARTER | - | |
| 5 | 23 51 1 232 049 | WASHER | - | |
| 6 | 23 51 1 231 682 | SPRING | - | |
| 7 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 02/96) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 7 | - | ||
| 9 | 23 51 1 230 055 | KICK STARTER LEVER | - | |
| 10 | 23 51 1 056 124 | SCREW | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
