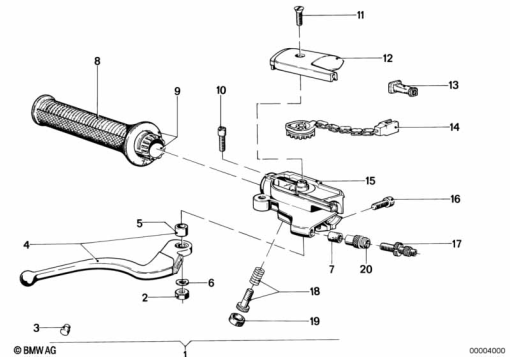

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 1 234 846 | HANDLE UNIT, RIGHT (to 09/80) | - | |
| 2 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 09/80) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 2 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI (to 09/80)Alternative for position 2 | - | ||
| 3 | 32 72 1 234 855 | NIPPLE HOLDER - D=12MM (to 09/80) | - | |
| 4 | 32 72 1 234 850 | HAND LEVER RIGHT (to 09/80) | - | |
| 5 | 32 72 1 232 662 | BUSH (to 09/80) | - | |
| 6 | 32 72 1 230 871 | WAVE WASHER (to 09/80) | - | |
| 7 | 32 72 1 231 610 | FELTRING (to 09/80) | - | |
| 8 | 32 72 1 237 812 | RUBBER GRIP SQUARE RIGHT (to 09/80) | - | |
| 9 | 32 72 1 454 129 | HANDLE (to 09/80) | - | |
| 10 | 32 72 1 230 870 | SCREW (to 09/80) | - | |
| 11 | 32 72 1 232 668 | CSK.FILLISTER HEAD SREW (to 09/80) | - | |
| 12 | 32 72 1 233 538 | COVER (to 09/80) | - | |
| 13 | 32 73 1 230 037 | CUP (to 09/80) | - | |
| 14 | 32 72 1 233 535 | CAM DISC - 33MM (to 09/80) | - | |
| 15 | 32 72 1 233 537 | HOUSING RIGHT (to 09/80) | - | |
| 16 | 07 11 9 900 311 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNS (to 09/80) | - | |
| 17 | 32 72 1 230 876.1 | stainless alternative | - | |
32 72 1 230 876 | CABLE ADJUSTER (to 09/80)Alternative for position 17 | - | ||
| 18 | 32 72 1 230 874 | LOCKING BOLT (to 09/80) | - | |
| 19 | 32 72 1 236 605 | PLUG (to 09/80) | - | |
| 20 | 32 72 1 232 514 | SLEEVE (to 09/80) | - |
