Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 9 | 32 72 1 457 050 | COVER (from 09/80) | - | |
| - | 32 72 1 457 080 | CAM DISC - 33MM (from 09/80) | - | |
| 10 | 32 72 1 457 080 | CAM DISC - 33MM (from 09/80) | - | |
| - | 32 72 1 457 050 | COVER (from 09/80) | - | |
| 11 | 32 72 1 242 563 | HOUSING (from 09/80) | - | |
| 13 | 07 11 9 934 620 | LOCK RING - 17X1 (from 09/80) | - | |
| 14 | 32 72 1 242 623 | EXPANSION TANK (from 09/80) | - | |
| 15 | 32 72 1 242 547 | RUBBER BOOT (from 09/80) | - | |
| 16 | 32 72 1 454 945 | COVER (from 09/80) | - | |
| 17 | 32 72 1 242 544 | COUNTERSUNK SCREW, BLACK - M5X55-4.8-ZN SW (from 09/80) | - | |
| 18 | 07 11 9 920 057 | FILLISTER-HEAD SCREW - M5X20-8.8 ZNS (from 09/80) | - | |
| 19 | 07 11 9 933 060 | SPRING WASHER - B5 (from 09/80) | - | |
| 20 | 32 72 1 242 552 | PLUG (from 09/80) | - | |
| 21 | 32 72 1 242 624 | O-RING (from 09/80) | - | |
| 22 | 32 72 1 242 625 | OVAL-HEAD SCREW - 4X12-WN1412-H (from 09/80) | - | |
| 24 | 61 31 1 244 070 | STOP LIGHT SWITCH (from 09/80) | - | |
| 25 | 32 72 1 236 605 | PLUG (from 09/80) | - | |
| 26 | 32 72 1 230 874 | LOCKING BOLT (from 09/80) | - | |
| 27 | 32 73 1 242 495 | CUP (from 09/80) | - | |
| 29 | 61 31 1 244 071 | CAP (from 09/80) | - |

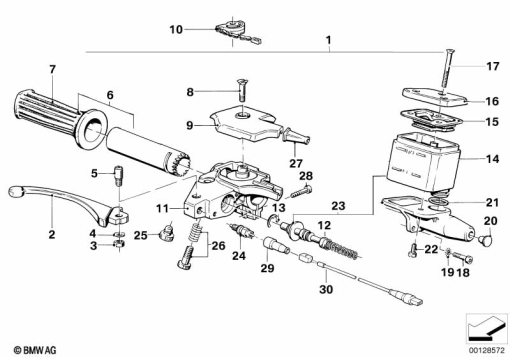

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
