R80 (2477) | Rear Axle & Suspension

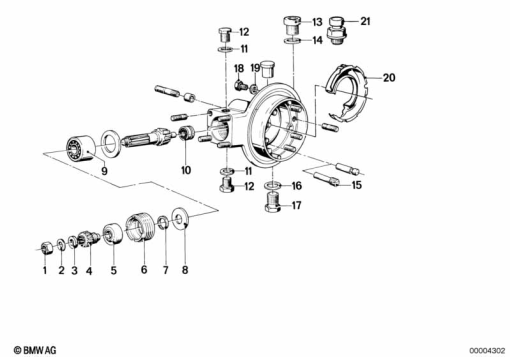

DIFFERENTIAL-BEVEL GEAR INST.PARTS
Diagram #33_0619 | 20 parts | 3 available in shop
100%
Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 21 1 230 084 | COLLAR NUT - M16X1.5 | 1 | |
| 2 | 07 11 9 931 093 | WASHER - 17 | 1 | |
| 3 | 33 12 1 233 302 | GASKET RING | 1 | |
| 4 | 33 12 1 233 303 | 0.26 | 1 | |
| 5 | 33 12 1 231 542 | SHAFT SEAL - 28X55X9 | 1 | |
| 6 | 33 12 1 230 355 | THREADED RING | 1 | |
| 7 | 33 12 1 230 353 | SHIM | 1 | |
| 8 | 33 12 1 230 525 | WASHER | 1 | |
| 9 | 33 12 1 230 247 | ANGULAR BALL BEARING - 3305-DA | 1 | |
| 10 | 33 12 1 230 244 | NEEDLE BEARING - 15X32X17 (to 09/80) | 1 | |
| 11 | 07 11 9 963 130 | GASKET RING - A12X15,5 AL | 1 | |
| 12 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV (to 09/80) | 1 | |
| 12 | 07 11 9 909 703 | SCREW PLUG - AM12X1,5 | 1 | |
| 12 | 07 11 9 905 428M | DRAIN PLUG W/ MAGNET | 1 | |
| 13 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV (to 09/80) | 1 | |
| 14 | 07 11 9 963 300 | GASKET RING - A18X22-AL | 1 | |
| 15 | 33 12 1 232 927 | SCREW (to 09/80) | 1 | |
| 16 | 07 11 9 963 200 | GASKET RING - A14X18-AL | 1 | |
| 17 | 11 13 1 744 329 | SCREW PLUG, MAGNETIC - M14X1,5 | 1 | |
| 13 | 07 11 9 905 428M | DRAIN PLUG W/ MAGNET | 1 |
