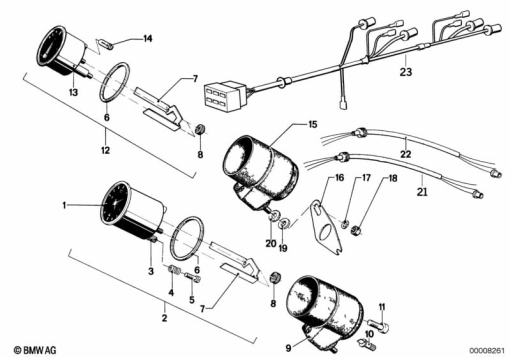

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 62 13 1 244 638 | CLOCK (from 09/77) | - | |
| 3 | 62 13 1 243 102 | ROTARY KNOB | - | |
| 4 | 62 13 1 243 104 | SPRING | - | |
| 5 | 62 13 1 243 103 | SCREW | - | |
| 6 | 62 13 1 243 100 | GASKET RING | - | |
| 8 | 62 13 1 459 257 | KNURLED NUT | - | |
| 9 | 62 13 1 243 642 | HOLDER - BLACK (from 09/77) | - | |
| 10 | 62 13 1 243 099 | ROTARY KNOB | - | |
| 11 | 62 13 1 243 098 | SCREW | - | |
| 12 | 62 13 1 244 668 | VOLTMETER (from 09/77) | - | |
| 14 | 07 11 9 978 279 | BULB - 12V 2W | - | |
| 15 | 62 13 1 357 868 | HOLDER - BLACK (from 09/77) | - | |
| 16 | 31 42 1 240 651 | LUG BLACK | - | |
| 17 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 18 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 19 | 51 43 6 440 260 | WASHER - 7X29X2 | - | |
| 20 | 63 12 1 357 502 | RUBBER WASHER | - | |
| 21 | 61 12 1 357 697 | WIRING CLOCK | - | |
| 22 | 61 12 1 357 703 | WIRING VOLTMETER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
