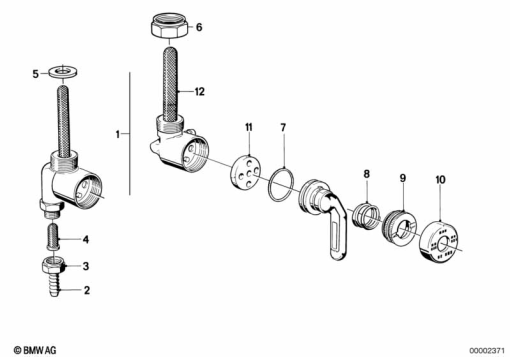

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 12 1 233 557 | FUEL COCK KARCOMA R26-/5/6/7 | 1 | |
| 2 | 16 12 1 233 366 | HOSE CONNECTOR | 1 | |
| 3 | 16 12 1 233 369 | CAP NUT | 1 | |
| 4 | 16 12 1 233 368 | STRAINER | 1 | |
| 5 | 16 12 1 240 060 | GASKET RING - A13.5X18 | 1 | |
| 6 | 16 12 1 233 363 | CAP NUT | 1 | |
| 7 | 16 12 1 234 869 | O-RING - 18X1,8 | 1 | |
| 8 | 16 12 1 236 390 | COMPRESSION SPRING | 1 | |
| 9 | 16 12 1 237 910 | 0.01 | 1 | |
| 10 | 16 12 1 233 367 | 16 12 1 233 367 | 2 | |
| 11 | 16 12 1 238 924 | GASKET | 1 | |
| 12 | 16 12 2 307 112 | STRAINER | 1 |
