R80 (2477) | Fuel Supply

FUEL TANK MOUNTING PARTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #16_0236 | 32 parts

100%

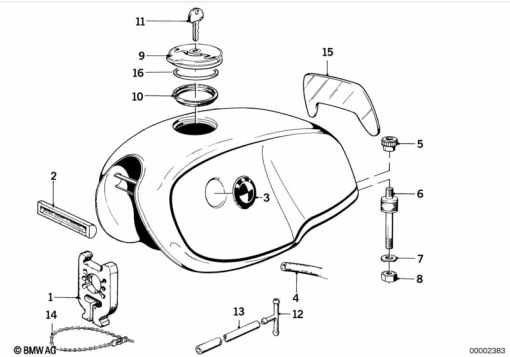

R80 (2477) FUEL TANK MOUNTING PARTS exploded view parts diagram

Parts List (32)

#	Part Number	Description	Qty
1	16 11 1 230 030	SUPPORT RUBBER	-
2	16 11 1 230 031	RUBBER MOUNTING	-
3	46 63 7 686 746	BADGE - D=70MM	-
4	16 13 2 307 010	HOSE - 1330MM	-
5	61 21 1 233 457	RING NUT	-
	SSA33457	STAINLESS THUMB NUT W/ WASHERAlternative for position 5	-
6	16 11 1 230 045	BUMP STOP	-
7	07 11 9 932 073	SPRING WASHER BLACK - B6-ZN	-
	07 11 9 932 0701	SS 6MM WASHERAlternative for position 7	-
	07 11 9 932 073	BLACK SPRING WASHERAlternative for position 7	-
	07 11 9 936 439	WASHER - 5.3-140 HV-ZNSAlternative for position 7	-
	07 11 9 904 496	WAVE WASHER - B6-ZNS3Alternative for position 7	-
8	07 11 9 905 543	HEX NUT - M6-8-ZNNIV SI	-
9	51 25 2 307 1251	REPRO OG TYPE FUEL CAP KEY	-
	51 25 2 307 1252	REPRO OG SCREW IN FUEL CAP KEYAlternative for position 9	-
	51 25 2 307 168	SET: FILLER CAP WITH LOCK CYLINDERAlternative for position 9	-
	51 25 2 307 125	FILLER CAPAlternative for position 9	-
	51 25 2 307 1251	REPRO OG TYPE FUEL CAP KEYAlternative for position 9	-
	51 25 2 307 1252	REPRO OG SCREW IN FUEL CAP KEYAlternative for position 9	-
-	51 25 2 307 166	LOCK CYLINDER WITH KEY	-
9	51 25 2 307 125	FILLER CAP	-
	51 25 2 307 1251	REPRO OG TYPE FUEL CAP KEYAlternative for position 9	-
	51 25 2 307 1252	REPRO OG SCREW IN FUEL CAP KEYAlternative for position 9	-
-	51 25 2 307 173	FILLER CAP LOCK (WITH KEY CODE)	-
10	16 11 2 307 360	RING	-
11	51 25 1 233 898	STANDARD KEY (CODE) (to 09/80)	-
	51 25 9 062 680	STANDARD KEY (BLANK) (to 09/80)Alternative for position 11	-
12	13 11 1 254 083	DISTRIBUTION PIECE	-
13	13 11 1 338 115	BULK MATERIAL, FUEL HOSE - 6X11 (meter)	-
14	61 13 1 377 134	CABLE TIE - L=292MM/B=4,8MM	-
15	16 11 1 453 403	FOIL	-
16	51 25 1 453 148	GASKET	-
