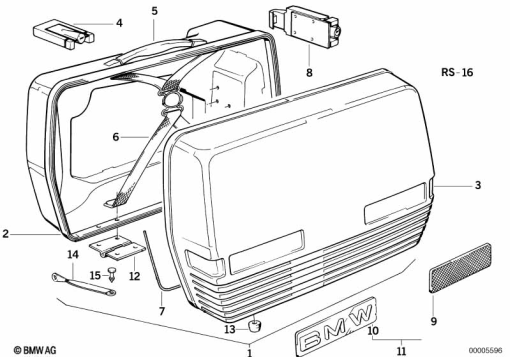

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 315 185 | SET: SET TOURING CASE | - | |
46 54 2 315 183 | TOURING CASE LEFT - 33LAlternative for position 1 | - | ||
| - | 51 25 2 303 681 | LOCK (WITH KEY CODE) | - | |
| - | 71 60 2 303 684 | SET: SET OF LOCKS, CODE | - | |
| 1 | 46 54 2 315 184 | TOURING CASE RIGHT - 33L | - | |
| - | 51 25 2 303 681 | LOCK (WITH KEY CODE) | - | |
| - | 71 60 2 303 684 | SET: SET OF LOCKS, CODE | - | |
| 2 | 46 54 1 237 990 | HOUSING BOTTOM LEFT | - | |
46 54 1 237 991 | HOUSING BOTTOM RIGHTAlternative for position 2 | - | ||
| 3 | 46 54 1 237 992 | COVER | - | |
| 4 | 46 54 2 303 821 | LOCK | - | |
| 5 | 46 54 2 300 013 | HANDLE | - | |
| 6 | 46 54 2 300 015 | RUBBER BAND | - | |
| 7 | 46 54 2 300 016 | GASKET | - | |
| 8 | 46 54 2 315 320 | CASE SUSPENSION CATCH | - | |
| 9 | 63 14 1 244 529 | SIDE REFLECTOR, YELLOW, FRONT | - | |
63 14 1 239 457 | SIDE REFLECTOR FRONT - REDAlternative for position 9 | - | ||
| 10 | 46 54 1 239 455 | EMBLEM - "BMW" | - | |
| 11 | 46 54 9 055 647 | SET: INSTALLING SIDE MARKING LIGHT - YELLOW | - | |
46 54 9 055 648 | SET: INSTALLING SIDE MARKING LIGHT - REDAlternative for position 11 | - | ||
| 12 | 46 54 2 300 018 | HINGE | - | |
| 13 | 46 54 2 300 017 | 0.01 | - | |
| 14 | 46 54 2 300 441 | HOLDING STRAP - L=180MM | - | |
| 15 | 51 16 1 828 956 | 0.01 | - | |
| 16 | 46 54 9 057 696 | SET: SET RIVET | - |
