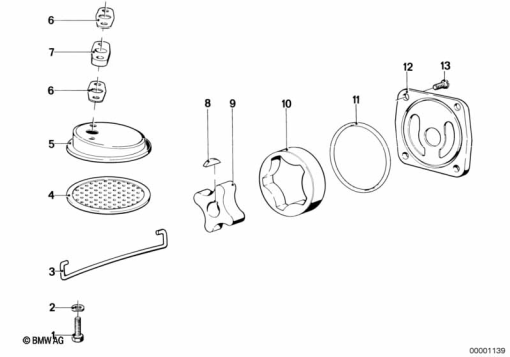

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 913 499 | HEX BOLT - M6X28-8.8 PHR (to 09/80) | - | |
| 2 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 2 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 2 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 2 | - | ||
| 3 | 11 41 1 252 226 | WIRE-STRAP | - | |
| 4 | 11 41 1 337 509 | PERFORATED PLATE | - | |
| 5 | 11 41 1 252 223 | OIL PUMP STRAINER (to 09/80) | - | |
| 6 | 11 41 1 265 258 | GASKET | - | |
| 7 | 11 41 1 265 590 | FLANGE (to 09/80) | - | |
| 8 | 07 11 9 951 440 | WOODRUFF KEY - 3X5MM | - | |
| 9 | 11 41 1 258 971 | ROTOR INNER - 3X5 (to 09/78) | - | |
11 41 1 335 194 | ROTOR INNER (from 09/78)Alternative for position 9 | - | ||
| 10 | 11 41 1 253 293 | ROTOR,OUTER | - | |
| 11 | 11 41 1 335 895 | O-RING - 62X2 | - | |
| 12 | 11 41 1 260 182 | OIL PUMP COVER (to 09/80) | - | |
| - | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 (to 09/80) | - |
