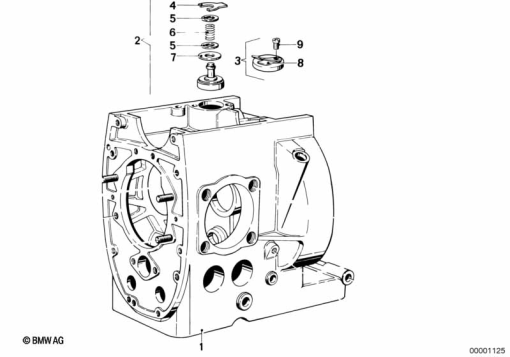

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 336 306 | ENGINE HOUSING (to 09/80) | - | |
11 11 1 337 180 | ENGINE HOUSING (from 09/80)Alternative for position 1 | - | ||
| 3 | 11 11 1 335 712 | NON-RETURN VALVE | - | |
| 4 | 07 12 9 934 312 | LOCK RING - D5,0 | - | |
| 5 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 5 | - | ||
| 6 | 11 11 1 251 228 | COMPRESSION SPRING | - | |
| 8 | 11 11 1 335 711 | DIAPHRAGM | - | |
| 9 | 07 11 9 907 602 | FILLISTER HEAD SCREW - M3X8-4.8-H-ZN | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
