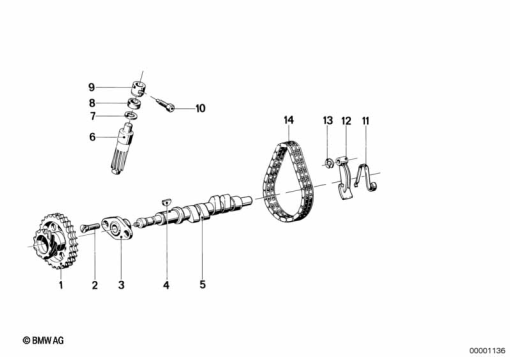

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 1 335 241 | CAMSHAFT GEAR (from 09/77) | - | |
| 2 | 11 31 1 263 853 | HEX BOLT - M8 (from 09/77) | - | |
11 31 1 263 853 | HEX BOLT - M8Alternative for position 2 | - | ||
11 31 1 263 853 | HEX BOLT - M8Alternative for position 2 | - | ||
| 3 | 11 31 1 250 251 | FLANGE | - | |
| - | 11 31 1 263 853 | HEX BOLT - M8 | - | |
| 4 | 07 11 9 951 480 | WOODRUFF KEY - 5X6.5 | - | |
| 5 | 11 31 1 263 001 | CAMSHAFT CAMSHAFT - 308DEG | - | |
| - | 11 41 1 335 194 | ROTOR INNER | - | |
| 6 | 11 31 1 250 187 | HELICAL GEAR WHEEL (to 09/77) | - | |
| 7 | 11 31 1 256 928 | WASHER (to 09/77) | - | |
| 8 | 11 31 1 256 861 | SHAFT SEAL - 7X16X7 (to 09/77) | - | |
| 9 | 11 31 1 250 186 | BUSH (to 09/77) | - | |
| 10 | 07 11 9 911 218 | CLAMPING BOLT - M6X15 (to 09/77) | - | |
| 11 | 11 31 1 253 188 | SPRING | - | |
| 12 | 11 31 1 265 455 | CHAIN TENSIONER | - | |
| 13 | 07 11 9 932 841 | CIRCLIP - D=6MM | - | |
| 14 | 11 31 1 250 258 | TIMING CHAIN - 3/8X7/32 | - | |
11 31 1 250 258E | E-CLIP FOR 11311250258 MASTER LINKAlternative for position 14 | - | ||
11 31 1 250 258B | MASTERLINK CHAIN 1970-78Alternative for position 14 | - | ||
| - | 11 31 1 250 2587 | MASTERLINK FOR DUPLEX CHAIN | - |
