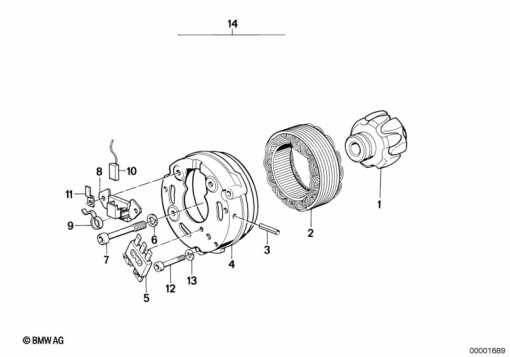

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 1 244 642 | ROTOR - 17A | 1 | |
| 1 | 12 31 1 244 642R | REPLACEMENT 85 MM ROTOR | 1 | |
| 1 | 1231641 | ALT. ROTOR | 1 | |
| 2 | 12 31 1 244 641 | STATOR ASSY - 17A | 1 | |
| 2 | 12 31 1 244 641R | REPLACEMENT 107MM STATOR | 1 | |
| 3 | 12 31 1 350 769 | ROLL PIN | 1 | |
| 4 | 12 31 1 243 002 | HOUSING | 1 | |
| 5 | 12 31 8 002 349 | CONNECTOR | 1 | |
| 6 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 7 | 12 31 8 002 348 | FILLISTER-HEAD SCREW | 1 | |
| 8 | 12 31 1 243 003 | BRUSH HOLDER PLATE | 1 | |
| 9 | 12 31 1 350 786 | COMPRESSION SPRING | 1 | |
| 10 | 12 31 1 244 480 | SET: CARBON BRUSH SET | 1 | |
| 10 | 12 31 1 244 4801 | BRUSHES FOR REPLACEMENT | 1 | |
| 10 | 12 31 1 244 389 | SET: KIT CARBON BRUSHES | 1 | |
| 11 | 12 31 8 002 351 | CABLE TERMINAL - D=5,3 | 1 | |
| 12 | 12 31 2 322 417 | FILLISTER-HEAD SCREW - M5X45-8.8 ZNS | 1 | |
| 13 | 07 11 9 932 098 | WAVE WASHER - B5 | 1 | |
| 14 | 12 31 1 243 288R | ALTERNATOR 400W OMEG | 1 | |
| 14 | 12 31 1 244 637 | ALTERNATOR - 12V17A | 1 | |
| 14 | 12 31 1 244 637OM | OMEGA 600W ALTERNATOR | 1 |
