Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 61 13 8 061 769 | CABLE SOCKET FEMALE - B=7,5/L=19,2MM | - | |
| 3 | 61 13 1 376 460 | CABLE SOCKET FEMALE - B=6,5/L=19,5 | - | |
| 4 | 61 13 1 352 810 | CABLE SOCKET FEMALE - 1,0-2,5MM² | - | |
| 5 | 61 13 8 608 021 | CABLE SOCKET FEMALE - B=8/L=20 | - | |
| 6 | 61 13 1 352 577 | CABLE SOCKET FEMALE - B=9,1/L=16,8 | - | |
| 7 | 61 13 1 362 373 | INSULATION SLEEVE | - | |
| 8 | 61 13 8 061 761 | CAP FOR FLAT PLUG | - | |
| 9 | 61 13 1 362 373 | INSULATION SLEEVE | - | |
| 10 | 61 13 1 352 095 | RUBBER GROMMET | - | |
| 11 | 61 13 8 070 188 | GROMMET | - | |
61 13 8 070 220 | GROMMETAlternative for position 11 | - | ||
| 12 | 61 13 1 352 234 | PLUG TERMINAL FOR HEAD LIGHT | - | |
| 13 | 12 32 8 608 018 | HOUSING | - | |
| 14 | 61 13 1 357 903 | PLUG HOUSING - 2-POLIG | - | |
| 15 | 61 13 1 351 283 | PLUG HOUSING | - | |
| 17 | 61 13 1 371 438 | CABLE SOCKET ROUND FEMALE | - | |
| 18 | 61 13 1 375 697 | PROTECTION CAP | - | |
| 19 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - | |
| 20 | 61 13 1 352 478 | LOCK | - | |
| 21 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - |

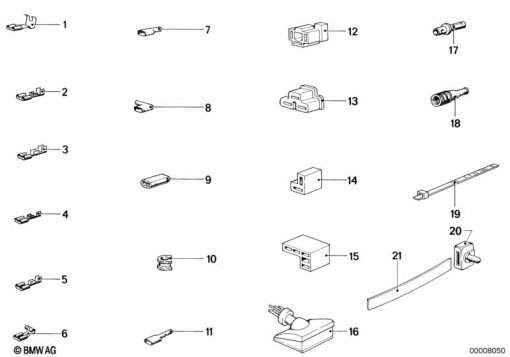

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
