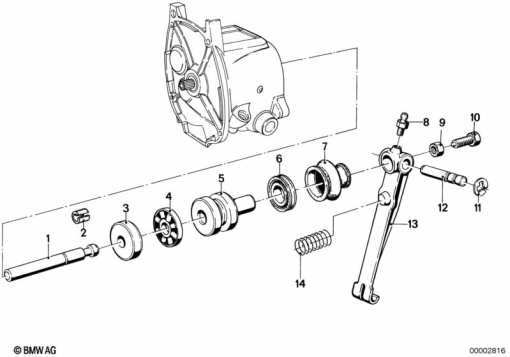

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 13 1 232 089 | ROD (to 09/80) | 1 | |
| 2 | 23 21 1 230 440 | FELTRING (to 09/80) | 1 | |
| 3 | 23 13 1 232 088 | WASHER (to 09/80) | 1 | |
| 4 | 23 13 1 232 079 | NEEDLE CAGE - 6X23X2 (to 09/80) | 1 | |
| 5 | 23 13 1 232 087 | THRUST ADAPTER (to 09/80) | 1 | |
| 6 | 21 52 1 020 109 | GASKET RING (to 09/80) | 1 | |
| 7 | 21 51 1 230 109 | CUP (to 09/80) | 1 | |
| 8 | 23 41 1 238 306 | NIPPLE (to 09/80) | 1 | |
| 9 | 07 11 9 904 948 | HEX NUT - M8-05-ZNNIV SI (to 09/80) | 1 | |
| 10 | 21 51 1 230 108 | SCREW (to 09/80) | 1 | |
| 11 | 07 11 9 905 858 | CIRCLIP - 7,0 (to 09/80) | 1 | |
| 11 | 07 12 9 904 492 | CIRCLIP - B8 (to 09/80) | 1 | |
| 12 | 23 13 1 241 484 | PIN - 8 MM (to 09/80) | 1 | |
| 13 | 23 13 1 234 049 | CLUTCH LEVER (to 09/80) | 1 | |
| 14 | 23 51 1 234 034 | COIL SPRING (to 09/80) | 1 |
