R80G/S (2471) | Wheels

WHEEL HUB REAR

Diagram #36_0142 | 5 parts | 1 available in shop

100%

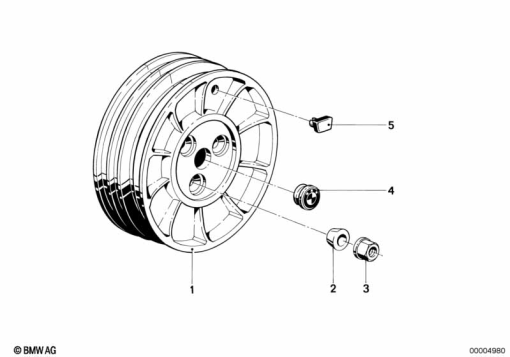

R80G/S (2471) WHEEL HUB REAR exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
36 31 1 241 671
WHEEL HUB REAR1
2
36 13 2 302 339
CONICAL RING1
3
07 11 9 926 433
COLLAR NUT - B12-8-ZNS1
4
36 31 1 242 142
CAP - D=27MM1
5
36 31 1 458 284
BLIND PLUG1
