Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 51 14 2 121 174 | LABEL "ORIGINAL BMW TEILE" | - | |
| 4 | 51 14 1 242 485 | TYPE PLATE (to 04/81) | - | |
51 14 2 301 483 | TYPE PLATE (from 04/81)Alternative for position 4 | - | ||
| 5 | 51 14 2 301 598 | RIVET - 3,2 (from 09/81) | - | |
| 6 | 51 14 1 242 483 | LABEL "ECE TEST CERTIFICATE" | - | |
| 7 | 46 63 1 242 484 | LABEL "TIRE PRESSURE" | - | |
46 63 1 242 493 | LABEL "TIRE PRESSURE"Alternative for position 7 | - | ||
46 63 1 242 492 | LABEL "TIRE PRESSURE"Alternative for position 7 | - | ||
| 8 | 71 21 2 122 014 | LABEL "TRANSISTORIZED IGNITION" | - | |
| 9 | 51 14 1 337 809 | LABEL - ABGAS (from 06/83) | - | |
51 14 1 338 132 | LABEL - ABGAS 85 (from 09/84)Alternative for position 9 | - | ||
51 14 1 338 223 | LABEL - ABGAS 86 (from 07/85)Alternative for position 9 | - | ||
51 14 1 338 296 | LABEL - ABGAS 87 (from 03/87)Alternative for position 9 | - | ||
51 14 1 337 663 | LABEL - ABGAS (09/81 to 09/82)Alternative for position 9 | - | ||
51 14 1 338 294 | LABEL - ABGAS 87 (from 03/87)Alternative for position 9 | - | ||
| 10 | 51 14 1 337 664 | LABEL - SLS-LEITUNGEN (09/81 to 09/82) | - | |
| 11 | 51 14 2 302 193 | LABEL - 83DBA (from 09/82) | - | |
51 14 2 302 197 | LABEL - 83DBA (from 06/83)Alternative for position 11 | - | ||
51 14 1 454 710 | LABEL - 83DBA (from 09/84)Alternative for position 11 | - | ||
51 14 1 454 993 | LABEL - 80DBA (from 07/85)Alternative for position 11 | - | ||
51 14 1 457 538 | LABEL - 80DBA (from 03/87)Alternative for position 11 | - | ||
| 12 | 51 14 2 301 489 | LABEL "TIRE PRESSURE" (from 09/82) | - | |
| 13 | 51 14 1 240 121 | LABEL "WARRANTY" - USA | - |

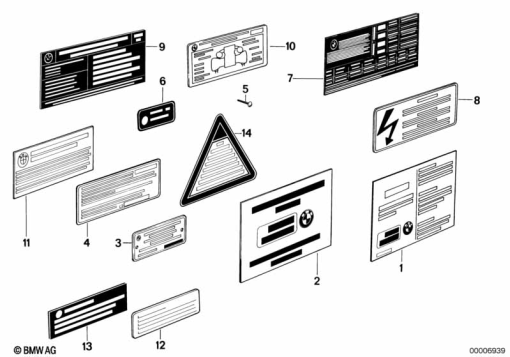

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
