R80G/S (2471) | Transmission

DRIVE SHAFT AND INTERMEDIATE SHAFT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #23_0257 | 30 parts

100%

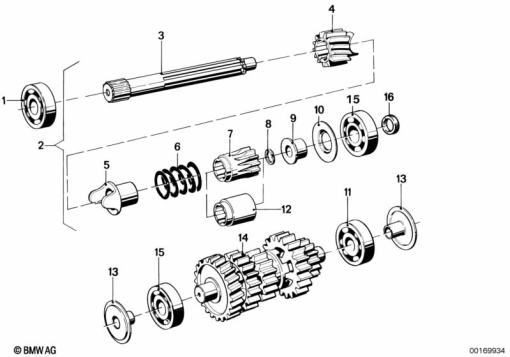

R80G/S (2471) DRIVE SHAFT AND INTERMEDIATE SHAFT exploded view parts diagram

Parts List (30)

#	Part Number	Description	Qty
1	23 21 1 235 449	CYLINDRICAL ROLLER BEARING,RADIAL - 20X47X14	1
2	23 21 1 242 105	DRIVE SHAFT KICK STARTER - 15°DEG / D=35.5 (to 04/82)	1
2	23 21 2 302 332	DRIVE SHAFT KICK STARTER - 17,5DEG/D=37 (03/85 to 09/86)	1
2	23 21 1 457 217	DRIVE SHAFT - 17.5°DEG/D=39.5 (from 09/86)	1
2	23 21 1 457 218	DRIVE SHAFT KICK STARTER - 17.5°DEG/D=39.5 (from 09/86)	1
2	23 21 2 302 331	DRIVE SHAFT - 17.5°DEG / D=37	1
2	23 21 2 302 332	DRIVE SHAFT KICK STARTER - 17,5DEG/D=37 (from 04/82)	1
3	23 21 1 241 855	DRIVE SHAFT - D=18MM (to 03/85)	1
3	23 21 2 302 327	DRIVE SHAFT - D=20MM (from 03/85)	1
4	23 21 1 231 519	GEAR WHEEL - 15°DEG / D=30 (to 04/82)	1
4	23 22 1 242 991	GEAR WHEEL - 17.5°DEG / D=30 (04/82 to 03/85)	1
4	23 21 2 302 326	GEAR WHEEL - 17.5°DEG / D=33 (from 03/85)	1
5	23 21 1 233 425	THRUST ADAPTER - D=35,5 (to 03/85)	1
5	23 21 2 302 325	THRUST ADAPTER - D=37 (03/85 to 09/86)	1
5	23 21 1 457 297	THRUST ADAPTER - D=39,5 (from 09/86)	1
5	23 21 2 302 325	THRUST ADAPTER - D=37 (from 03/85)	1
6	23 21 1 231 303	COMPRESSION SPRING	1
7	23 21 1 242 442	GEAR WHEEL KICK STARTER - Z=14 (to 03/85)	1
7	23 21 2 302 328	GEAR WHEEL KICK STARTER - Z=14 (from 03/85)	1
8	07 11 9 933 516	SNAP RING - A20	1
8	23 21 1 232 086	SNAP RING - A18	1
9	23 21 1 232 062	BUSH	1
10	23 21 1 230 452	COVER - 1.00MM	1
11	23 12 1 231 495	GROOVED BALL BEARING - 6304 C3	1
12	23 21 2 302 329	INTERMEDIATE PIECE (from 03/85)	1
13	23 11 1 233 835	WASHER	1
14	23 21 1 237 798	INTERMEDIATE SHAFT - 15 DEG (to 04/82)	1
14	23 21 1 242 996	INTERMEDIATE SHAFT - 17.5°DEG (from 04/82)	1
15	23 12 1 233 808	GROOVED BALL BEARING - 6304 C3 RS	1
16	23 12 1 242 522	SHAFT SEAL - 8X14X4	1
