Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 2 303 272 | HANDLEBAR HEATED GRIP, BLACK | - | |
| 2 | 32 71 1 242 418 | CLAMPING SUPPORT, TOP (to 10/89) | - | |
| 5 | 32 71 1 232 926 | CLAMP SUPPORT, BLACK, LOWER | - | |
| 6 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/92) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 6 | - | ||
| 7 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 8 | 71 60 2 303 496 | SET: RETROFIT KIT, HAND GUARD, WHITE | - | |
| 9 | 71 60 2 303 471 | HAND GUARD, WHITE, LEFT | - | |
71 60 2 303 472 | HAND GUARD, WHITE, RIGHTAlternative for position 9 | - | ||
| 10 | 07 11 9 902 998 | HEX BOLT - M6X35-8.8-ZNS3 | - | |
| 11 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| - | 07 11 9 901 189 | bolt 6x1.0x35 | - | |
| 12 | 71 60 2 303 573 | BUSH | - | |
| 13 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/92) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 13 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 13 | - |

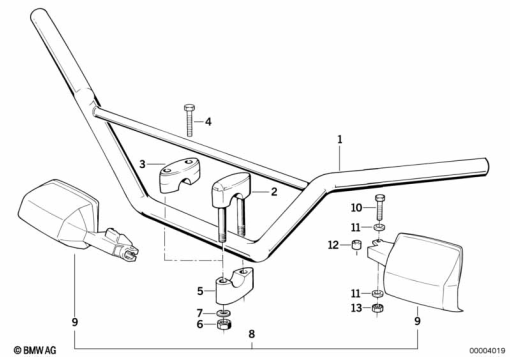

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
