R80G/S (2471) | Steering

HANDLE UNIT, RIGHT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #32_0747 | 32 parts | 1 available in shop

100%

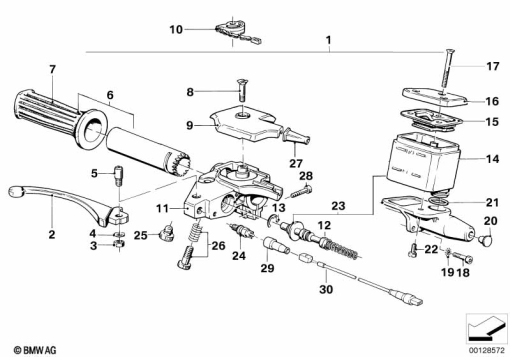

R80G/S (2471) HANDLE UNIT, RIGHT exploded view parts diagram

Parts List (32)

#	Part Number	Description	Qty
1	32 72 2 302 367	HANDLE UNIT, RIGHT - D=12MM (from 09/81)	1
1	61 31 1 459 569	SWITCH (from 09/81)	1
2	32 72 1 242 555	HANDLEVER BLACK RIGHT	1
3	32 72 8 532 969	NUT, SELF-LOCKING - M6 (from 09/80)	1
4	32 72 1 230 871	WAVE WASHER (from 09/80)	1
5	32 72 1 238 380	SCREW (from 09/80)	1
6	32 72 1 454 129	HANDLE (from 09/80)	1
7	32 72 1 237 812	RUBBER GRIP SQUARE RIGHT (from 09/80)	1
8	32 72 1 454 245	COUNTERSUNK SCREW - M5X15-ZN-SW (from 09/80)	1
9	32 72 1 457 050	COVER (from 09/80)	1
1	32 72 1 457 080	CAM DISC - 33MM (from 09/80)	1
10	32 72 1 457 080	CAM DISC - 33MM (from 09/80)	1
–	32 72 1 457 050	COVER (from 09/80)	1
11	32 72 1 242 563	HOUSING (from 09/80)	1
12	32 72 2 302 371	PISTON - D=12MM (from 09/81)	1
13	07 11 9 934 620	LOCK RING - 17X1 (from 09/80)	1
14	32 72 1 242 623	EXPANSION TANK (from 09/80)	1
15	32 72 1 242 547	RUBBER BOOT (from 09/80)	1
16	32 72 1 454 945	COVER (from 09/80)	1
17	32 72 1 242 544	COUNTERSUNK SCREW, BLACK - M5X55-4.8-ZN SW (from 09/80)	1
18	07 11 9 920 057	FILLISTER-HEAD SCREW - M5X20-8.8 ZNS (from 09/80)	1
18	32 72 1 451 987	FILLISTER-HEAD SCREW - M5X20-Z4-8.8-SW (from 09/80)	1
19	07 11 9 933 060	SPRING WASHER - B5 (from 09/80)	1
20	32 72 1 242 552	PLUG (from 09/80)	1
21	32 72 1 242 624	O-RING (from 09/80)	1
22	32 72 1 242 625	OVAL-HEAD SCREW - 4X12-WN1412-H (from 09/80)	1
23	32 72 2 310 784	SET: CYLINDER WITH PISTON - D=13MM (to 09/81)	1
23	32 72 2 302 369	CYLINDER WITH PISTON - D=12MM (from 09/81)	1
24	61 31 1 244 070	STOP LIGHT SWITCH (from 09/80)	1
25	32 72 1 236 605	PLUG (from 09/80)	1
27	32 73 1 242 495	CUP (from 09/80)	1
29	61 31 1 244 071	CAP (from 09/80)	1
