R80G/S (2471) | Seat

BENCH SEAT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #52_0982 | 31 parts

100%

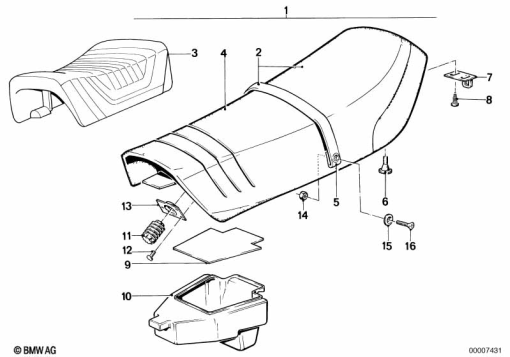

R80G/S (2471) BENCH SEAT exploded view parts diagram

Parts List (31)

#	Part Number	Description	Qty
1	52 53 1 453 101	DOUBLE SEAT BENCH - RED	-
	52 53 1 453 102	DOUBLE SEAT BENCH - BLACKAlternative for position 1	-
	52 53 1 453 302	DOUBLE SEAT BENCH, LOW - BLACKAlternative for position 1	-
	52 53 1 456 091	DOUBLE SEAT BENCH - BLUEAlternative for position 1	-
2	52 53 1 453 104	DOUBLE SEAT BENCH - RED	-
	52 53 1 453 105	DOUBLE SEAT BENCH - BLACKAlternative for position 2	-
	52 53 1 453 303	DOUBLE SEAT BENCH, LOW - BLACKAlternative for position 2	-
	52 53 1 456 094	DOUBLE SEAT BENCH - BLUEAlternative for position 2	-
3	52 53 1 453 837	SINGLE SEAT RED - P/D	-
	5255170	OEM Quality Replica PD Seat.Alternative for position 3	-
-	46 54 1 453 838	BAGGAGE PORTER	-
4	52 53 1 453 087	SEAT COVER - RED (from 09/86)	-
-	52 53 1 453 101	DOUBLE SEAT BENCH - RED (from 09/86)	-
4	52 53 1 453 088	SEAT COVER - BLACK (from 09/86)	-
-	52 53 1 453 102	DOUBLE SEAT BENCH - BLACK (from 09/86)	-
4	52 53 1 456 092	SEAT COVER - BLUE (from 09/86)	-
-	52 53 1 456 091	DOUBLE SEAT BENCH - BLUE (from 09/86)	-
5	52 53 1 453 080	STRAP - RED	-
	52 53 1 453 086	STRAP - BLACKAlternative for position 5	-
	52 53 2 301 659	STRAP - REDAlternative for position 5	-
6	52 53 1 230 319	RUBBER SUPPORT - D=18MM	-
7	52 53 1 242 309	HOLDER	-
8	07 11 9 907 943	FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X13-Z1	-
	07 11 9 904 310	SHEET METAL SCREW - 4,2X13Alternative for position 8	-
9	52 53 1 242 317	GASKET	-
10	52 53 1 242 233	TOOL BOX	-
11	51 23 1 852 347	STOP BUFFER	-
12	07 12 9 948 742	RIVET - 3,2-3A	-
13	52 53 2 302 081	LOCK PLATE	-
15	52 53 1 231 327	HOLLOW WASHER	-
16	07 11 9 903 522	COUNTERSUNK HEAD SCREW - M6X22-4.8-H-ZNS	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
