R80G/S (2471) | Instruments Dash
COCKPIT / TELLTALES

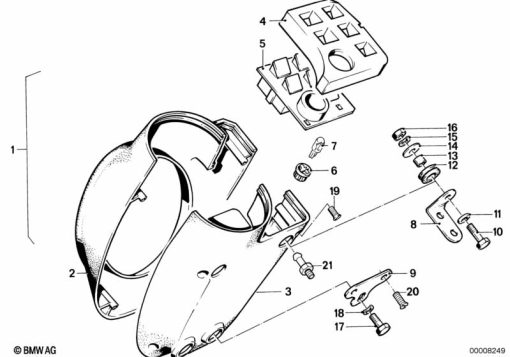

Diagram #62_0214 | 32 parts | 4 available in shop
100%
Parts List (32)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 21 1 244 193 | DASHBOARD SUPPORT (to 09/86) | 1 | |
| 2 | 62 21 1 456 571 | HOUSING HALF FRONT - ALPINWHITE (from 09/86) | 1 | |
| 3 | 62 21 1 244 041 | HOUSING HALF REAR (to 09/86) | 1 | |
| 3 | 62 21 1 456 569 | HOUSING HALF REAR - ALPINWHITE (from 09/86) | 1 | |
| 4 | 62 21 1 244 755 | COVER | 1 | |
| 5 | 62 14 1 244 756 | TELL-TALE | 1 | |
| 6 | 62 13 7 728 087 | BULB SOCKET | 1 | |
| 7 | 62 14 1 244 727 | BULB | 1 | |
| 8 | 62 21 1 244 133 | BRACKET UPPER LEFT | 1 | |
| 8 | 62 21 1 244 134 | BRACKET UPPER RIGHT | 1 | |
| 9 | 62 21 1 244 055 | BRACKET LOWER | 1 | |
| 8 | 6221133 | BRACKET SET UPPER | 1 | |
| 10 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | 1 | |
| 10 | 07 11 9 913 016.1 | STAINLESS 6 X 20 BOLT | 1 | |
| 11 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 12 | 62 21 1 244 064 | RUBBER GROMMET | 1 | |
| 13 | 62 21 1 244 068 | BUSH | 1 | |
| 14 | 62 21 1 244 072 | WASHER | 1 | |
| 15 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 15 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 15 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 16 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | 1 | |
| 17 | 07 11 9 905 524 | HEX BOLT - M6X12-8.8-ZNNIV | 1 | |
| 15 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 15 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 18 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 18 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 18 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 19 | 62 21 1 459 938 | COUNTERSUNK HEAD SCREW - M4X50 | 1 | |
| 20 | 62 21 1 459 939 | COUNTERSUNK HEAD SCREW - M4X25 | 1 | |
| 18 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 18 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 |
