R80G/S (2471) | Fuel Supply

FUEL TANK

Diagram #16_0223 | 29 parts

100%

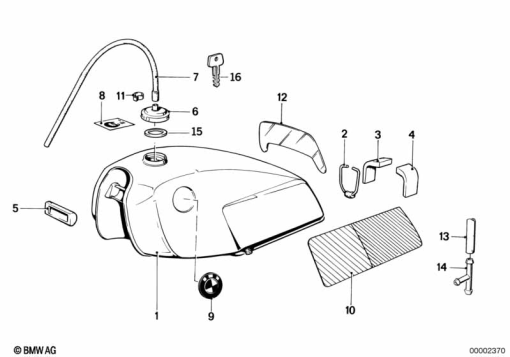

R80G/S (2471) FUEL TANK exploded view parts diagram

Parts List (29)

#Part NumberDescriptionQty
1
16 11 0 142 105
FUEL TANK-
16 11 1 453 914
FUEL TANK PRIME COATED - PDAlternative for position 1-
16 11 0 143 992
FUEL TANK PRIME COATEDAlternative for position 1-
2
16 11 1 240 159
RETAINER-
3
16 11 1 237 553
SUPPORT RIGHT-
4
16 11 1 237 552
SUPPORT LEFT-
5
16 11 1 236 124
DISTANCE RUBBER-
6
16 13 1 455 063
FILLER CAP-
7
16 13 2 307 010
HOSE - 1330MM-
8
51 14 1 453 617
LABEL - HELM-
9
46 63 7 686 746
BADGE - D=70MM-
10
16 11 1 242 363
DECORATIVE STRIP FRONT LEFT - BL/BL (to 09/86)-
16 11 1 242 364
DECORATIVE STRIP FRONT RIGHT - BL/BL (to 09/86)Alternative for position 10-
16 11 2 301 649
DECORATIVE STRIP FRONT LEFT - RT/BL (to 09/86)Alternative for position 10-
16 11 2 301 650
DECORATIVE STRIP FRONT RIGHT - RT/BL (to 09/86)Alternative for position 10-
51 14 1 456 061
DECORATIVE STRIP FRONT LEFT - WS/RT (from 09/86)Alternative for position 10-
51 14 1 456 062
DECORATIVE STRIP FRONT RIGHT - WS/RT (from 09/86)Alternative for position 10-
51 14 1 456 065
DECORATIVE STRIP FRONT LEFT - WS/BL (from 09/86)Alternative for position 10-
51 14 1 456 066
DECORATIVE STRIP FRONT RIGHT - WS/BL (from 09/86)Alternative for position 10-
51 14 1 456 191
DECORATIVE STRIP FRONT LEFT - BL/BL (from 09/86)Alternative for position 10-
51 14 1 456 192
DECORATIVE STRIP FRONT RIGHT - BL/BL (from 09/86)Alternative for position 10-
51 14 2 307 029
DECORATIVE STRIP FRONT LEFT - RT/RT (from 09/86)Alternative for position 10-
51 14 2 307 030
DECORATIVE STRIP FRONT RIGHT - RT/RT (from 09/86)Alternative for position 10-
11
16 11 1 242 783
HOSE CLAMP-
12
16 11 2 301 599
FOIL-
13
13 11 1 338 115
BULK MATERIAL, FUEL HOSE - 6X11 (meter)-
14
13 11 1 254 083
DISTRIBUTION PIECE-
15
16 11 1 453 910
GASKET-
16
16 11 1 236 349
STANDARD KEY (CODE)-
