Parts List (11)

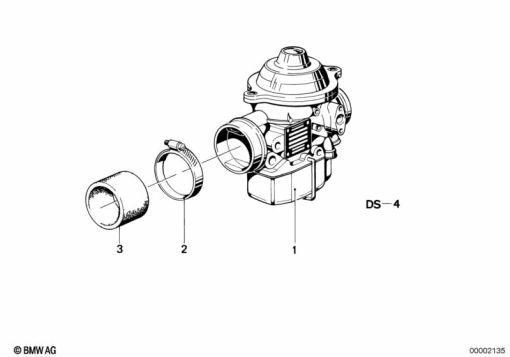

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 1 337 811 | CARBURETTOR LEFT - 64/32/351 (to 10/84) | - | |
13 11 1 337 812 | CARBURETTOR RIGHT - 64/32/352 (to 10/84)Alternative for position 1 | - | ||
13 11 1 337 537 | CARBURETTOR LEFT - 64/32/321 (to 03/85)Alternative for position 1 | - | ||
13 11 1 337 538 | CARBURETTOR RIGHT - 64/32/332 (to 03/85)Alternative for position 1 | - | ||
13 11 1 338 089 | CARBURETTOR LEFT - 64/32/357 (from 11/84)Alternative for position 1 | - | ||
13 11 1 338 090 | CARBURETTOR RIGHT - 64/32/358 (from 11/84)Alternative for position 1 | - | ||
13 11 1 337 811 | CARBURETTOR LEFT - 64/32/351 (from 03/85)Alternative for position 1 | - | ||
13 11 1 337 812 | CARBURETTOR RIGHT - 64/32/352 (from 03/85)Alternative for position 1 | - | ||
| 2 | 07 12 9 952 121 | HOSE CLAMP - L=47-54MM | - | |
| 3 | 13 72 1 254 654 | RUBBER GROMMET - 42X52X28 | - | |
| 4 | 13 11 1 258 051 | SET: GASKET SET CARBURETTOR | - |
