R80G/S (2471) | Front Suspension

FORK BRIDGE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_0293 | 18 parts

100%

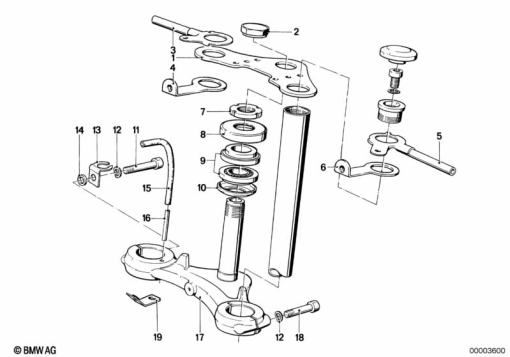

R80G/S (2471) FORK BRIDGE exploded view parts diagram

Parts List (18)

#	Part Number	Description	Qty
1	31 42 1 242 263	UPPER FORK CROSS BRACE	-
2	31 42 1 230 478	CAP NUT - M28X1.5-ZNS	-
3	31 42 1 242 232	TURN INDICATOR HOLDER, BLACK, RIGHT - D=31.5MM	-
5	31 42 1 242 231	TURN INDICATOR HOLDER, BLACK, LEFT - D=31.5MM	-
7	31 42 1 232 343	NUT - M28X1.5	-
8	31 42 2 000 312	PROTECTION CAP	-
9	31 42 7 663 941	TAPERED ROLLER BEARING - 28X52X16	-
	07 11 9 985 070SET	STEERING HEAD BEARING SETAlternative for position 9	-
10	31 42 1 234 509	RING	-
	31 42 1 234 5091	RING ON STR SHAFT SSAlternative for position 10	-
11	07 12 9 904 984	TORX BOLT - M10X50-ZNS3	-
12	07 11 9 907 114	WASHER - 10-200HV-ZNNIV	-
13	34 32 1 242 269	HOSE CLAMP	-
14	34 32 1 242 308	RING - 5	-
16	07 11 9 941 470	ROLL PIN - 5X60	-
17	31 42 1 241 734	FORK BRIDGE BLACK LOWER	-
18	07 12 9 905 166	ISA SCREW - M10X45	-
28	07 11 9 919 672	FILLISTER-HEAD SCREW	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
