Parts List (5)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 9 062 034 | SET: EINBAUSATZ AGGREGATEUNTERSCHUTZ BACK | - | |
| 2 | 71 60 2 303 837 | REAR AGGREGATE PROTECTIVE PLATE | - | |
| 3 | 71 60 2 303 836 | CLAMP | - | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 6 | 07 11 9 904 304 | COUNTERSUNK HEAD SCREW - M6X16-8.8-ZNS3 | - |

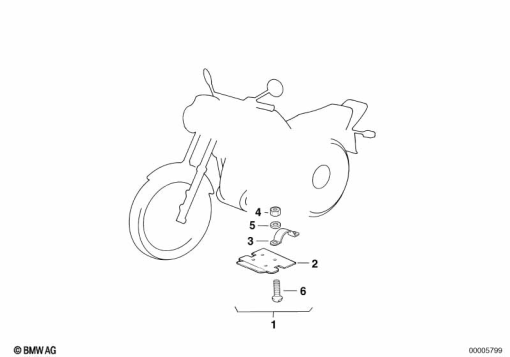

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
