R80G/S (2471) | Frame, Fairing, Cases

TOURING CASE

Diagram #46_0101 | 9 parts

100%

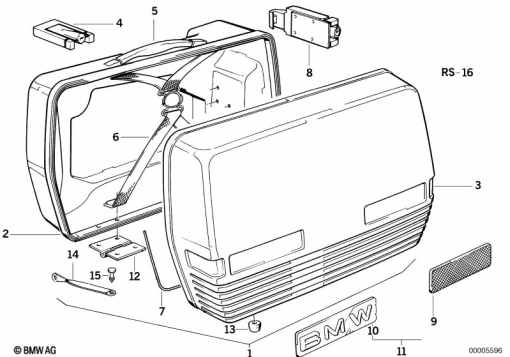

R80G/S (2471) TOURING CASE exploded view parts diagram

Parts List (9)

#Part NumberDescriptionQty
1
46 54 2 315 186
SET: SET TOURING CASE-
2
46 54 1 239 499
HOUSING BOTTOM LEFT-
3
46 54 1 237 992
COVER-
9
63 14 1 244 529
SIDE REFLECTOR, YELLOW, FRONT-
63 14 1 239 457
SIDE REFLECTOR FRONT - REDAlternative for position 9-
10
46 54 1 239 455
EMBLEM - "BMW"-
11
46 54 9 055 647
SET: INSTALLING SIDE MARKING LIGHT - YELLOW-
46 54 9 055 648
SET: INSTALLING SIDE MARKING LIGHT - REDAlternative for position 11-
16
46 54 9 057 696
SET: SET RIVET-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
