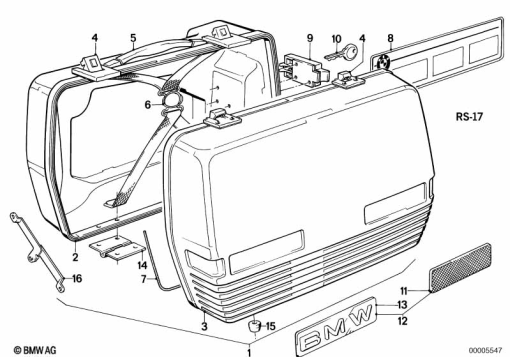

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 9 056 114 | TOURING CASE RIGHT - CODE (to 04/89) | - | |
46 54 9 056 259 | TOURING CASE LEFT - CODE (to 04/89)Alternative for position 1 | - | ||
46 54 9 062 853 | HOUSING BOTTOM LEFT (to 04/89)Alternative for position 1 | - | ||
| 2 | 46 54 1 239 499 | HOUSING BOTTOM LEFT (to 04/89) | - | |
46 54 9 062 854 | HOUSING BOTTOM RIGHT (to 04/89)Alternative for position 2 | - | ||
| 3 | 46 54 1 237 992 | COVER (to 04/89) | - | |
| 4 | 46 54 2 300 007 | CASE CATCH (to 04/89) | - | |
46 54 2 300 009 | CASE CATCH - (CODE) (to 04/89)Alternative for position 4 | - | ||
| 5 | 46 54 2 300 013 | HANDLE | - | |
| 6 | 46 54 2 300 015 | RUBBER BAND (to 04/89) | - | |
| 7 | 46 54 2 300 016 | GASKET (to 04/89) | - | |
| 9 | 46 54 2 300 008 | CASE SUSPENSION CATCH (to 04/89) | - | |
46 54 2 300 012 | CASE SUSPENSION CATCH - (CODE) (to 04/89)Alternative for position 9 | - | ||
| 10 | 46 54 2 300 006 | STANDARD KEY (CODE) (to 04/89) | - | |
| 11 | 63 14 1 239 457 | SIDE REFLECTOR FRONT - RED | - | |
| 12 | 46 54 9 055 648 | SET: INSTALLING SIDE MARKING LIGHT - RED | - | |
| 13 | 46 54 1 239 455 | EMBLEM - "BMW" | - | |
| 14 | 46 54 2 300 018 | HINGE (to 04/89) | - | |
| 15 | 46 54 2 300 017 | PAD (to 04/89) | - | |
| 17 | 46 54 9 057 696 | SET: SET RIVET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
