R80G/S (2471) | Exhaust System
EXHAUST SYSTEM

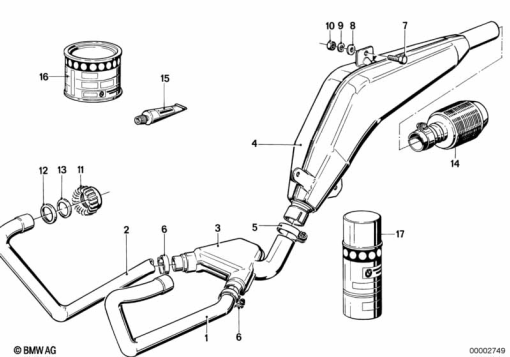

Diagram #18_0262 | 19 parts
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 18 11 1 451 842 | EXHAUST PIPE BLACK RIGHT | - | |
| 3 | 18 12 2 302 017 | FRONT MUFFLER BLACK | - | |
| 4 | 18 12 2 302 018 | REAR MUFFLER BLACK | - | |
| 5 | 18 21 2 301 577 | MUFFLER CLAMP | - | |
| 6 | 18 21 1 238 282 | MUFFLER CLAMP | - | |
18 21 2 301 625 | MUFFLER CLAMPAlternative for position 6 | - | ||
| 7 | 07 11 9 902 900 | HEX BOLT - M8X16-8.8-ZNS3 | - | |
| 8 | 07 11 9 931 684 | WASHER - 8,4 140HV | - | |
| 9 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 10 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 07/87) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 10 | - | ||
| 11 | 18 21 1 234 721 | NUT - M52X2 | - | |
| 12 | 18 21 1 230 585 | COMPRESSION RING | - | |
| 13 | 18 21 1 230 586 | CLAMP RING | - | |
18 21 1 457 109 | CLAMP RINGAlternative for position 13 | - | ||
| 14 | 18 12 1 242 644 | SPARK ARRESTER | - | |
| 15 | 18 21 9 062 599 | ASSEMBLING PASTE - 100G | - | |
| 16 | 51 91 2 302 221 | SYNTHETIC RESIN LACQUER BLACK - 600GRAD 250ML | - | |
| 17 | 51 91 1 907 970 | SPRAY BLACK HEAT PROOF - 400ML | - |
