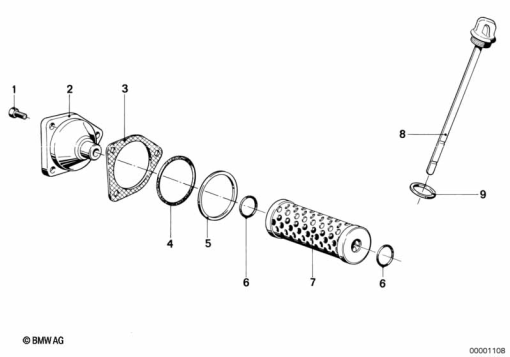

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 13 1 460 677 | MULTI-PURPOSE BOLT - M6X20-Z3-ZNS | - | |
| 2 | 11 42 1 263 345 | OIL FILTER COVER | - | |
| 3 | 11 42 1 338 600 | GASKET ASBESTOS FREE | - | |
| 4 | 11 42 1 264 160 | O-RING - 44X4 | - | |
| 5 | 11 42 1 336 895 | WASHER - 45.3X51.9X0.3 | - | |
| 6 | 11 42 1 250 285 | O-RING - 13X3.5 | - | |
| 7 | 11 42 1 337 198 | Oil Filter | - | |
11 42 1 337 570 | OIL FILTERAlternative for position 7 | - | ||
11 42 1 337 572 | OIL FILTER STRAIGHTAlternative for position 7 | - | ||
| - | 11 42 1 335 396 | SET: INSTALLING SET OIL COOLER | - | |
| 8 | 11 43 1 337 543 | DIPSTICK | - | |
| 9 | 11 43 1 337 308 | O-RING - 25X2 | - |
