R80G/S (2471) | Engine

CYLINDER HEAD / COVER / GASKETS

Diagram #11_1691 | 38 parts | 3 available in shop

100%

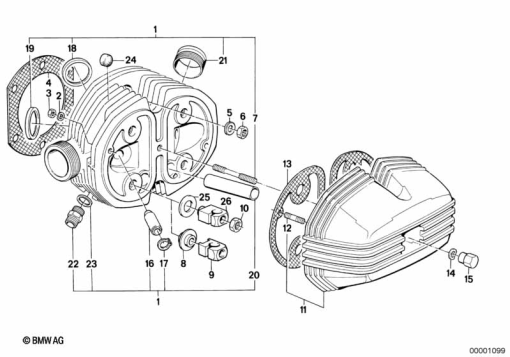

R80G/S (2471) CYLINDER HEAD / COVER / GASKETS exploded view parts diagram

Parts List (38)

#Part NumberDescriptionQty
1
11 12 1 337 874
CYLINDER HEAD LEFT - SLS1
1
11 12 1 337 875
CYLINDER HEAD RIGHT - SLS1
2
07 11 9 932 0701
SS 6MM WASHER1
2
07 11 9 932 073
SPRING WASHER BLACK - B6-ZN1
2
07 11 9 932 073
BLACK SPRING WASHER1
2
07 11 9 936 439
WASHER - 5.3-140 HV-ZNS1
3
07 11 9 905 543
HEX NUT - M6-8-ZNNIV SI1
4
11 12 1 338 716
CYLINDER HEAD GASKET ASBESTOS-FREE1
5
11 12 1 336 872
WASHER - 3,5 ZNS1
6
11 11 1 263 903
HEX NUT1
7
07 12 9 908 142
STUD BOLT - M8X701
8
11 12 1 261 405
SUSPENSION (to 11/84)1
9
11 12 1 258 264
SUPPORT FOR ROCKER ARM SHAFT (to 11/84)1
10
11 12 7 650 402
HEX NUT - M101
11
11 12 1 263 761
CYLINDER HEAD COVER, SILVER, RIGHT (to 09/86)1
11
11 12 1 263 762
CYLINDER HEAD COVER, SILVER, LEFT (to 09/86)1
11
11 12 1 262 248
CYLINDER HEAD COVER BLACK LEFT (from 09/86)1
11
11 12 1 262 250
CYLINDER HEAD COVER BLACK RIGHT (from 09/86)1
12
07 12 9 904 546
STUD BOLT - M6X401
13
11 12 1 338 426
GASKET - ASBESTFREI1
14
07 11 9 904 115
WAVE WASHER - 8,4X15-ZNS31
15
11 12 0 023 160
TAPPET COVER CAP NUT SS1
15
11 12 1 744 330
CAP NUT - M8-CR1
15
11 12 1 744 330.1
TAPPET CVR NUT1
16
11 12 1 338 708
VALVE GUIDE - 14.061
16
11 12 1 338 711
VALVE GUIDE - 14.251
17
11 12 1 744 332
LOCK RING1
18
11 12 1 256 004
VALVE SEAT RING INTAKE - +0,21
18
11 12 1 256 008
VALVE SEAT RING INTAKE - +0.41
19
11 12 1 337 899
VALVE SEAT INSERT EXHAUST LEAD-FREE - +0,21
19
11 12 1 337 900
VALVE SEAT INSERT EXHAUST LEAD-FREE - +0,41
20
11 12 1 262 259
PROTECTION TUBE1
21
11 12 1 257 396
CONNECTOR - 64/32 - M42X1.51
22
07 11 9 972 501
CONNECTOR - 10X161
23
07 11 9 963 252
GASKET RING - A16X20-AL1
24
11 12 1 337 818
PUSHROD SEAL1
25
11 12 1 337 868
BASE (from 11/84)1
26
11 12 1 337 867
SUPPORT FOR ROCKER ARM SHAFT (from 11/84)1
