R80G/S (2471) | Electrical System

VARIOUS ADDITIONAL CABLE HARNESSES

Diagram #61_0193 | 14 parts

100%

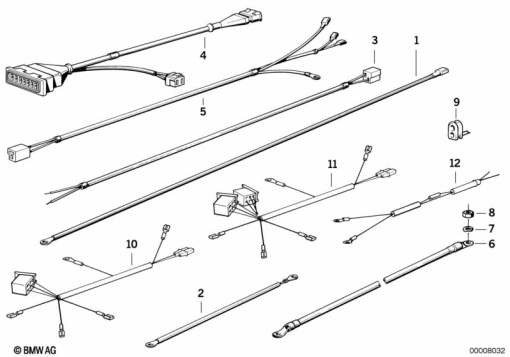

R80G/S (2471) VARIOUS ADDITIONAL CABLE HARNESSES exploded view parts diagram

Parts List (14)

#Part NumberDescriptionQty
1
61 12 1 244 216
WIRE CHARGING CURRENT (to 09/85)-
61 12 1 243 224
WIRE CHARGING CURRENT (from 09/85)Alternative for position 1-
2
61 12 1 244 217
BATTERY CABLE NEGATIVE (to 09/85)-
61 12 1 244 475
BATTERY CABLE NEGATIVE (from 09/85)Alternative for position 2-
3
61 12 1 244 138
WIRING HARNESS, BRAKE LIGHT SWITCH, REAR-
61 13 1 244 090
WIRING HARNESS, BRAKE LIGHT SWITCH, FRAlternative for position 3-
4
61 12 1 244 176
WIRE IGNITION COIL-
5
61 12 1 243 523
WIRING TRANSMISSION-SWITCH-
6
61 12 1 243 473
BATTERY CABLE (PLUS POLE)-
7
07 11 9 904 115
WAVE WASHER - 8,4X15-ZNS3-
8
12 41 1 255 797
HEX NUT - M8-
9
61 13 1 244 464
RUBBER GROMMET-
11
61 12 1 244 175
WIRING HARNESS, STARTER MOTOR-
12
61 12 1 244 272
WIRING PLUG TERMINAL-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
