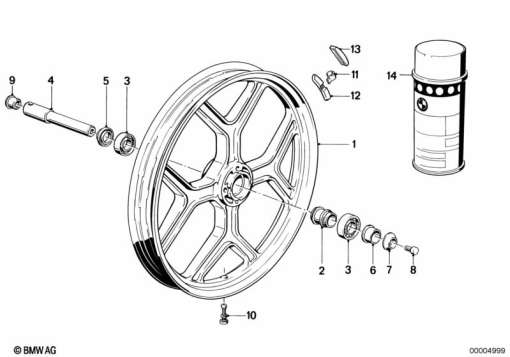

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 1 451 897 | CAST IRON RIM SILVER FRONT - 2,50X18 | - | |
| 2 | 36 31 1 450 824 | PIPE | - | |
| 3 | 36 31 1 450 967 | GROOVED BALL BEARING - 25X47X12 | - | |
| 4 | 36 31 1 454 950 | QUICK-RELEASE AXLE | - | |
| 5 | 36 31 1 452 173 | BUSH | - | |
| 6 | 36 31 1 452 171 | BUSH | - | |
| 7 | 36 31 1 450 834 | SHIM | - | |
| 8 | 07 11 9 901 039 | FILLISTER-HEAD SCREW - M10X20-8.8-ZNS | - | |
| 9 | 36 31 1 451 468 | 0.03 | - | |
| 11 | 36 31 1 451 792 | SPRING | - | |
| 12 | 36 31 1 242 944 | BALANCE WEIGHT - 10G | - | |
36 31 1 242 945 | BALANCE WEIGHT - 15GAlternative for position 12 | - | ||
36 31 1 242 946 | BALANCE WEIGHT - 20GAlternative for position 12 | - | ||
36 31 1 242 947 | BALANCE WEIGHT - 30GAlternative for position 12 | - | ||
36 31 1 242 948 | BALANCE WEIGHT - 25GAlternative for position 12 | - | ||
| 13 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 13 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 13 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 13 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 13 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 13 | - | ||
| 14 | 51 91 1 240 868 | SPRAY SILVER - 131 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
