R65 (2472) | Vehicle Trim

SET OF LOCKS

Diagram #51_2592 | 10 parts

100%

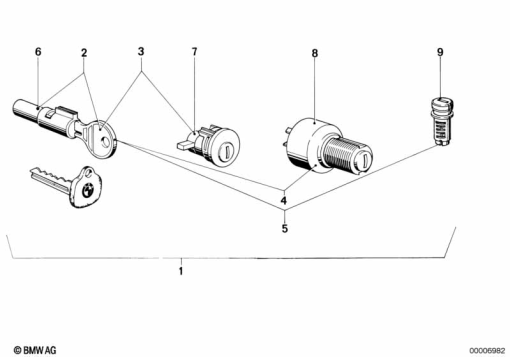

R65 (2472) SET OF LOCKS exploded view parts diagram

Parts List (10)

#Part NumberDescriptionQty
2
51 25 1 243 274
STEERING LOCK-
3
51 25 1 243 277
DUAL SEAT LOCK-
5
51 25 2 307 166
LOCK CYLINDER WITH KEY-
-
51 25 2 307 140
FILLER CAP-
6
51 25 1 243 499
STEERING LOCK - CODE-
7
51 25 1 243 500
DUAL SEAT LOCK - CODE-
9
51 25 2 307 173
FILLER CAP LOCK (WITH KEY CODE) (from 06/88)-
-
51 25 2 307 125
FILLER CAP (from 06/88)-
-
51 25 2 307 1251
REPRO OG TYPE FUEL CAP KEY-
-
51 25 2 307 1252
REPRO OG SCREW IN FUEL CAP KEY-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
