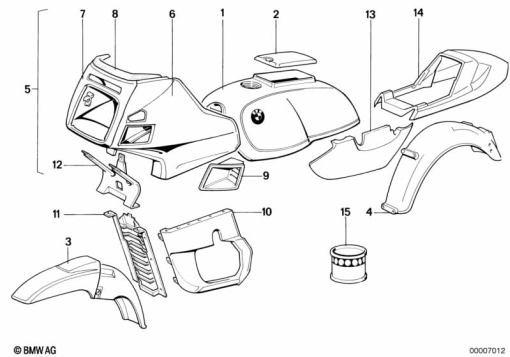

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 1 455 550 | FUEL TANK - POLARIS | - | |
16 11 1 455 551 | FUEL TANK - POLARISAlternative for position 1 | - | ||
| 3 | 46 61 1 455 554 | MUDGUARD FRONT - POLARIS | - | |
| 4 | 46 62 1 452 290 | REAR WHEEL COVER | - | |
| 5 | 46 63 1 455 750 | TRIM PANEL UPPER PART "RT" - POLARIS | - | |
| 6 | 46 63 1 455 757 | LATERAL TRIM PANEL LEFT "RT" - POLARIS | - | |
| 7 | 46 63 1 455 758 | RIGHT LATERAL BODY PART "RT" - POLARIS | - | |
| 8 | 46 63 2 302 219 | CENTER PART - POLARIS | - | |
| 9 | 46 63 1 455 763 | AIR INLET LEFT - POLARIS | - | |
46 63 1 455 764 | AIR INLET RIGHT - POLARISAlternative for position 9 | - | ||
| 10 | 46 63 2 302 107 | ENGINE TRIM LEFT PROTECTION BAR - POLARIS | - | |
46 63 2 302 108 | ENGINE TRIM RIGHT PROTECTION BAR - POLARISAlternative for position 10 | - | ||
46 63 2 302 153 | ENGINE TRIM LEFT - POLARISAlternative for position 10 | - | ||
46 63 2 302 154 | ENGINE TRIM RIGHT - POLARISAlternative for position 10 | - | ||
| 11 | 46 63 2 302 155 | ENGINE TRIM CENTER - POLARIS | - | |
| 12 | 46 63 2 302 220 | COVERING LOWER PART - POLARIS | - | |
| 13 | 46 63 1 455 555 | BATTERY COVER LEFT - POLARIS | - | |
46 63 1 455 556 | BATTERY COVER RIGHT - POLARISAlternative for position 13 | - | ||
| 14 | 52 53 1 455 577 | TAIL PART UPPER - POLARIS | - | |
| 15 | 51 91 1 235 987 | RULING INK BLUE - 250ML 105 | - | |
51 91 1 240 265 | RULING INK WHITE - 250ML 101Alternative for position 15 | - | ||
51 91 1 853 472 | SET: METALLIC LACQUER POLARIS - 1000ML 060Alternative for position 15 | - | ||
51 91 1 853 487 | SET: METALLIC LACQUER POLARIS - 250ML 060Alternative for position 15 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
