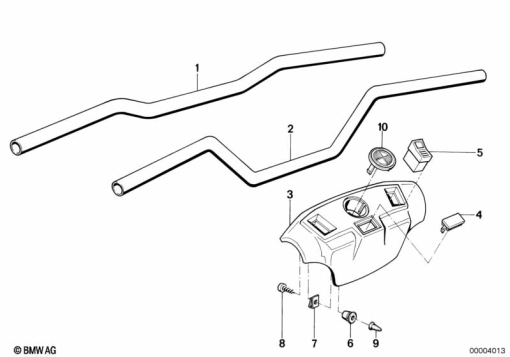

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 32 71 2 303 043 | HANDLEBAR, RAISED, HEATED GRIP, CHROME | - | |
32 71 2 303 545 | HANDLEBAR, RAISED, HEATED GRIP, BLACKAlternative for position 2 | - | ||
| 3 | 32 71 1 452 460 | IMPACT PLATE | - | |
| 4 | 32 71 1 242 932 | 32 71 1 242 932 | - | |
| 5 | 32 71 1 459 318 | COVERING CAP | - | |
| 6 | 32 71 1 452 444 | RUBBER GROMMET | - | |
| 7 | 07 12 9 904 245 | BODY NUT - ST4,2-2 | - | |
| 8 | 07 11 9 907 939 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X13-Z2 | - | |
| 9 | 46 63 1 235 759 | GROMMET | - |
