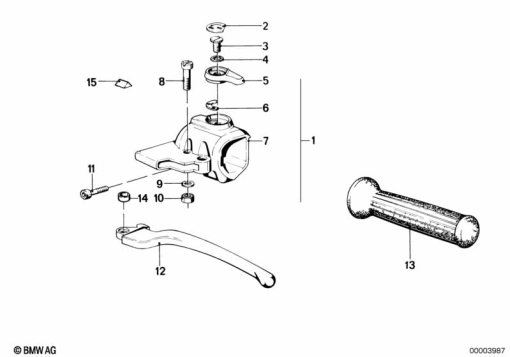

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 1 241 862 | HANDLE UNIT LEFT | 1 | |
| 2 | 32 72 1 451 975 | 32 72 1 451 975 | 1 | |
| 3 | 07 11 9 907 430 | SAUCER-HEAD SCREW - M6X12 | 1 | |
| 4 | 32 72 1 240 791 | WASHER - 1,200MM | 1 | |
| 5 | 32 72 1 240 792 | LEVER FOR CHOKE | 1 | |
| 6 | 32 72 1 240 790 | PLATE | 1 | |
| 7 | 32 72 1 240 796 | HOUSING | 1 | |
| 8 | 32 72 1 230 870 | SCREW | 1 | |
| 9 | 32 72 1 230 871 | WAVE WASHER | 1 | |
| 10 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/95) | 1 | |
| 10 | 07 14 7 575 163 | SELF-LOCKING HEX NUT | 1 | |
| 10 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 11 | 07 11 9 900 311 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNS | 1 | |
| 12 | 32 72 1 234 848 | HAND LEVER LEFT | 1 | |
| 13 | 32 72 1 237 811 | RUBBER GRIP LEFT SQUARE | 1 | |
| 14 | 32 72 1 232 662 | BUSH | 1 |
