R65 (2472) | Seat

RADIO TELEPHONE BOX

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #52_1017 | 24 parts

100%

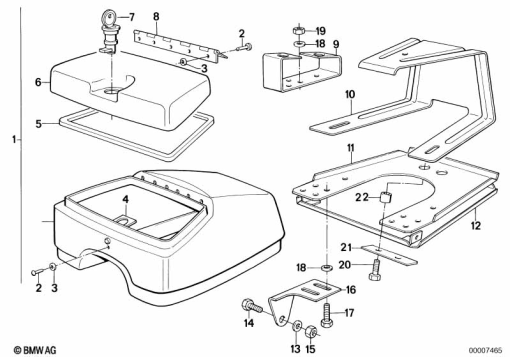

R65 (2472) RADIO TELEPHONE BOX exploded view parts diagram

Parts List (24)

#	Part Number	Description	Qty
1	46 54 1 234 539	RADIO TELEPHONE BOX	-
2	07 12 9 948 739	RIVET - 3,2-4M	-
3	07 11 9 931 015	WASHER - A3,2	-
4	46 54 1 231 099	SUPPORT	-
5	46 54 1 231 100	GASKET	-
6	46 54 1 231 077	COVER	-
7	46 54 1 231 059	LOCK	-
8	46 54 1 231 104	HINGE	-
9	46 54 1 234 537	BRACKET	-
10	46 54 1 231 662	HOLDER	-
11	46 54 1 234 543	PLATE	-
12	46 54 1 237 311	BASE	-
13	07 11 9 904 606	WASHER - 6-200 HV-ZNS3	-
14	07 11 9 913 589	HEX BOLT - M6X25	-
15	07 12 9 904 876	HEX NUT - M6-8-ZNS3	-
	07 14 7 575 163	SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 15	-
	07 12 9 905 817	HEX NUTAlternative for position 15	-
16	46 54 2 303 017	BRACKET LEFT	-
	46 54 2 303 018	BRACKET RIGHTAlternative for position 16	-
17	07 11 9 913 116	HEX BOLT - M5X20-8.8 ZNS	-
18	07 11 9 936 439	WASHER - 5.3-140 HV-ZNS	-
20	07 11 9 902 993	HEX BOLT - M6X50 8.8 ZNS3	-
21	63 23 1 352 944	BASE	-
22	46 54 2 303 015	BUSH	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
