R65 (2472) | Rear Axle & Suspension

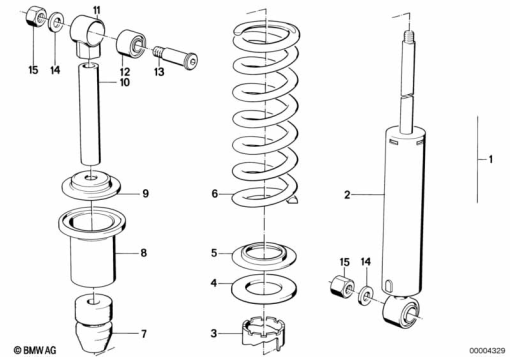

SPRING STRUT, REAR
Diagram #33_0647 | 16 parts | 8 available in shop
100%
Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3353121 | Aftermarket "SPORT" shock for monolever bikes | 1 | |
| 1 | 33 53 1 452 127 | SPRING STRUT, REAR | 1 | |
| 2 | 33 53 1 452 326 | SHOCK ABSORBER | 1 | |
| 3 | 33 53 1 452 234 | RING | 1 | |
| 4 | 33 53 1 452 111 | SPRING POCKET | 1 | |
| 5 | 33 53 1 452 350 | CENTERING RING | 1 | |
| 6 | 33 53 1 452 346 | COIL SPRING | 1 | |
| 7 | 33 53 1 454 233 | SPRING | 1 | |
| 8 | 33 53 1 452 323 | PROTECTION TUBE | 1 | |
| 9 | 33 53 1 454 153 | SPRING POCKET | 1 | |
| 10 | 33 53 1 452 320 | SPACER TUBE | 1 | |
| 11 | 33 53 1 452 322 | SHOCK RETAINER | 1 | |
| 12 | 33 53 1 452 325 | RUBBER MOUNTING | 1 | |
| 13 | 33 53 1 452 122 | FIT BOLT | 1 | |
| 14 | 07 11 9 904 209 | WASHER - 10-200 ZNS3 | 1 | |
| 15 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS | 1 |
